Seal Lite 3D Scanner
- 0.02mm Accuracy
- 0.07mm Resolution
- 226g Lightweight
Tax excluded.
7-Day Risk-Free Trial
14-Day Price Protection
Free Scanning Software
Shipping info
Order will be shipped out from German/ Luxembourg warehouse in 2-5 business days once being processed.
Seal Series: Ease of Scan, Art of Detail
Take a look
Geometric
Videos

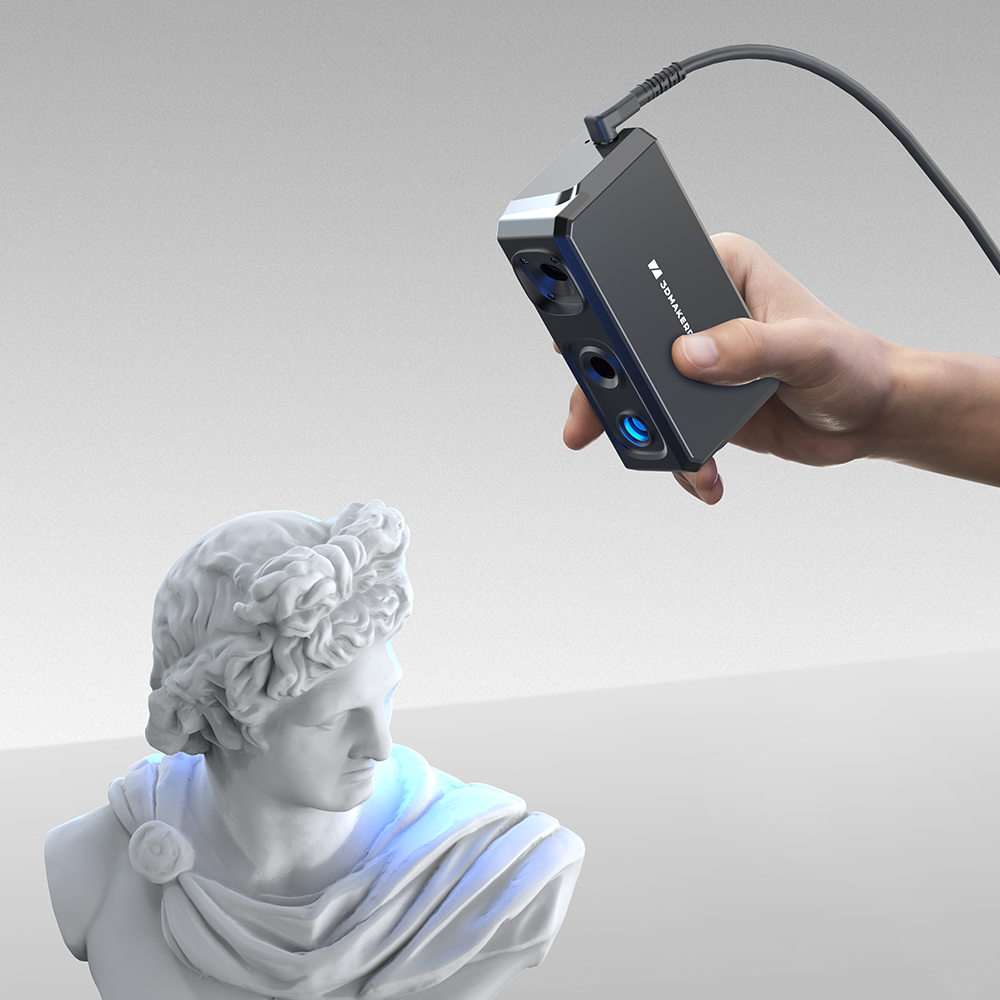

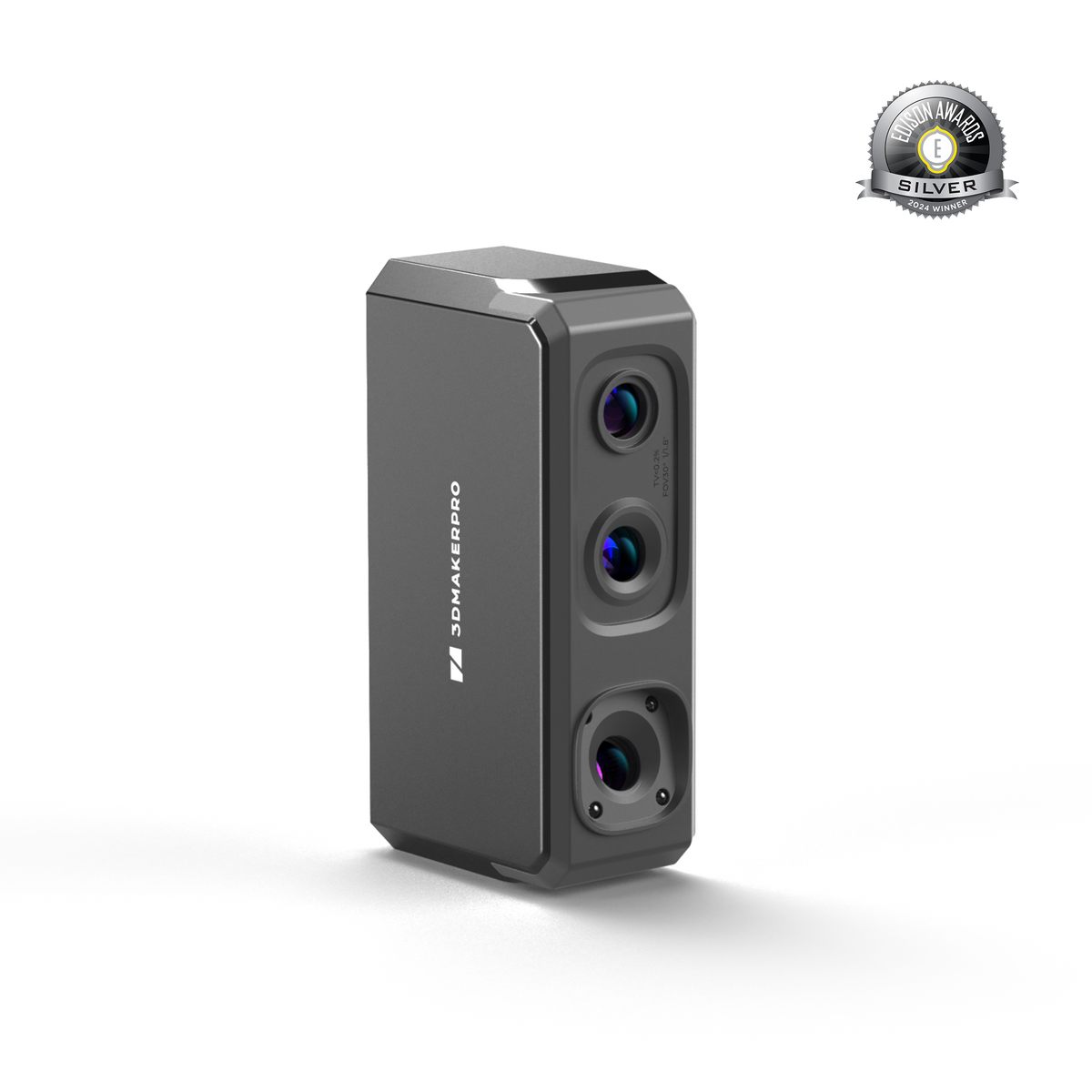

Introducing Seal Lite
The Cost-Effective and Practical Choice with Precision-Blue Imaging System.
5x More Detail Per Unit
With its shorter wavelength (400 to 500 nano), it projects refined structured light, achieving 0.02mm accuracy.
0.02mm
Accuracy
Achieve exceptional 0.02mm accuracy for precise object reproduction.
0.07mm
Resolution
Experience impressive detail with a 0.07mm minimum point spacing.

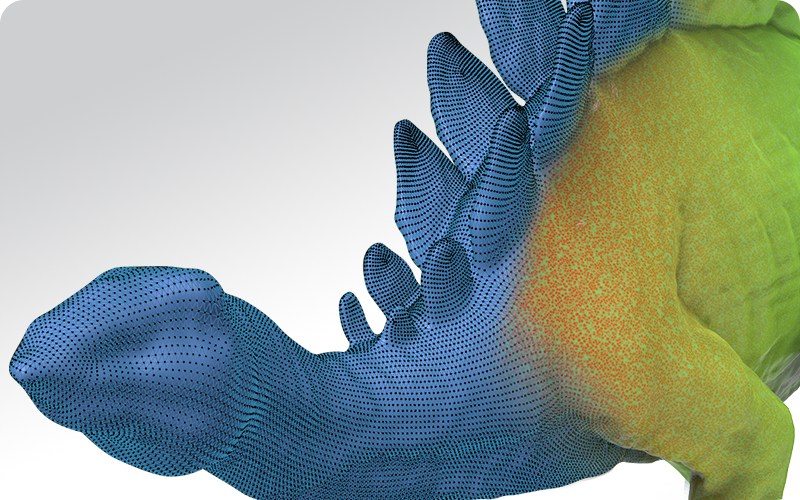

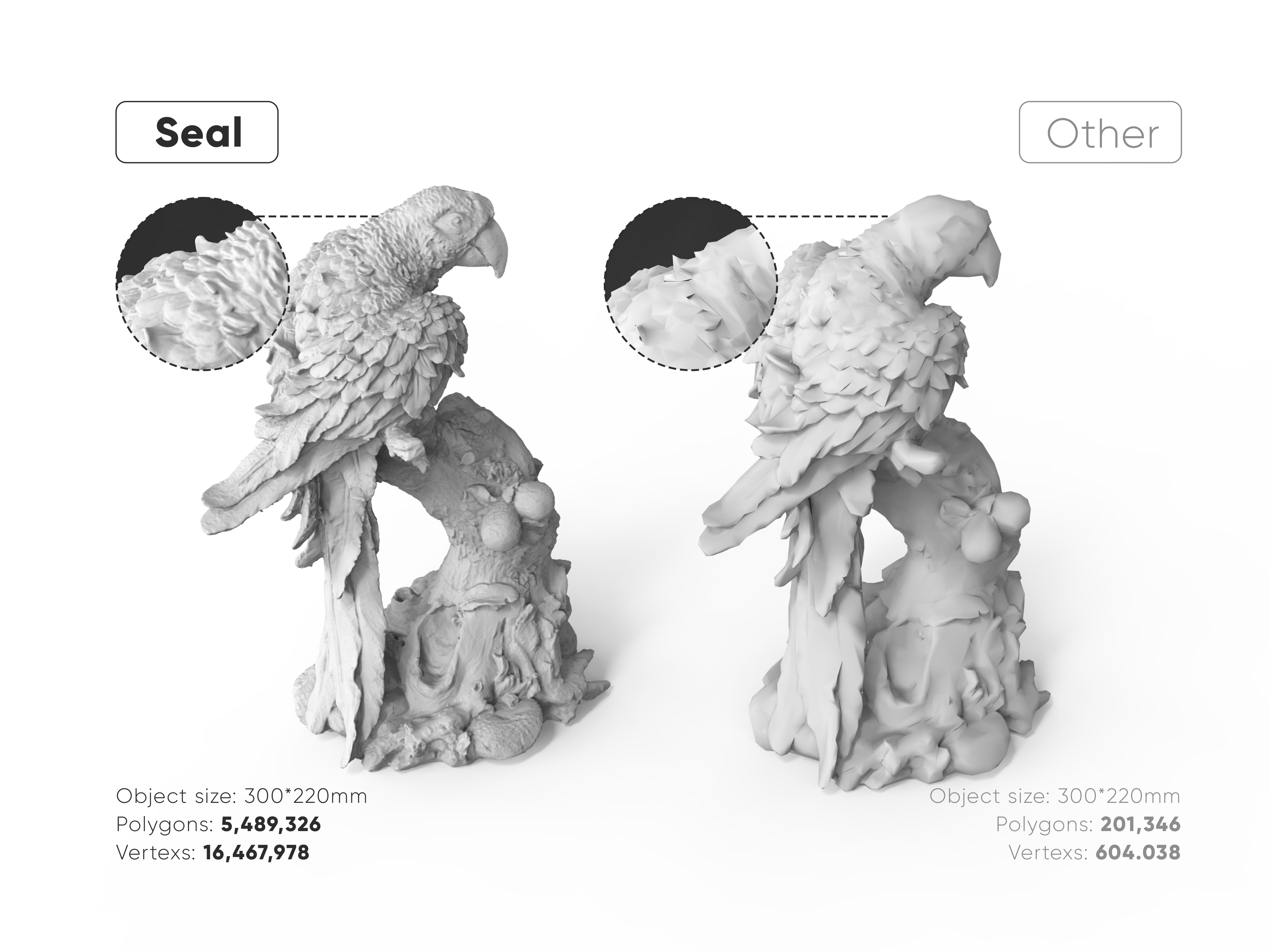

Incredible Precision
Precision Blue imaging system delivers 0.02mm accuracy and up to 3x the resolution of comparable scanners. Get highly detailed models with ease.
Smooth Scan
Smooth scanning with Seal's advanced optical system and JMStudio algorithms.
Anti-Shaking Lenses
Optical stabilization filters out unwanted jitter for smooth, continuous scanning.
Lightning-Fast Speed
Collecting 100,000 points per second, it swiftly scans body parts and more.

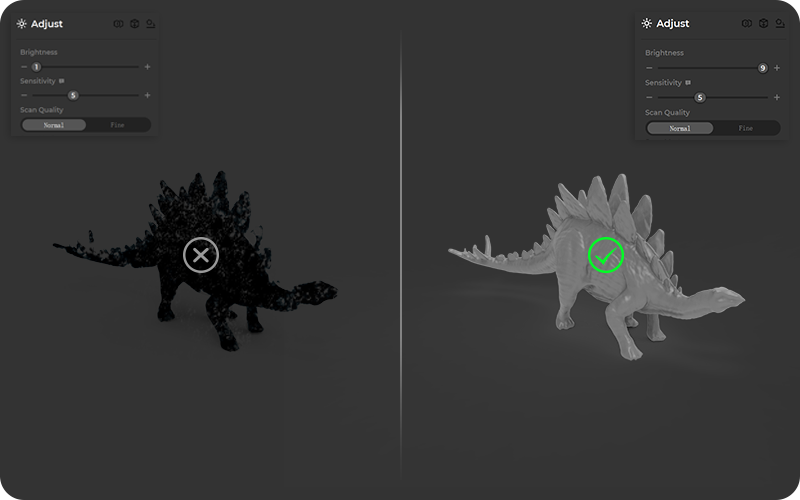

Brilliant in Darkness
9-level light adjustment for versatile scanning in varying colors, materials, and lighting conditions.

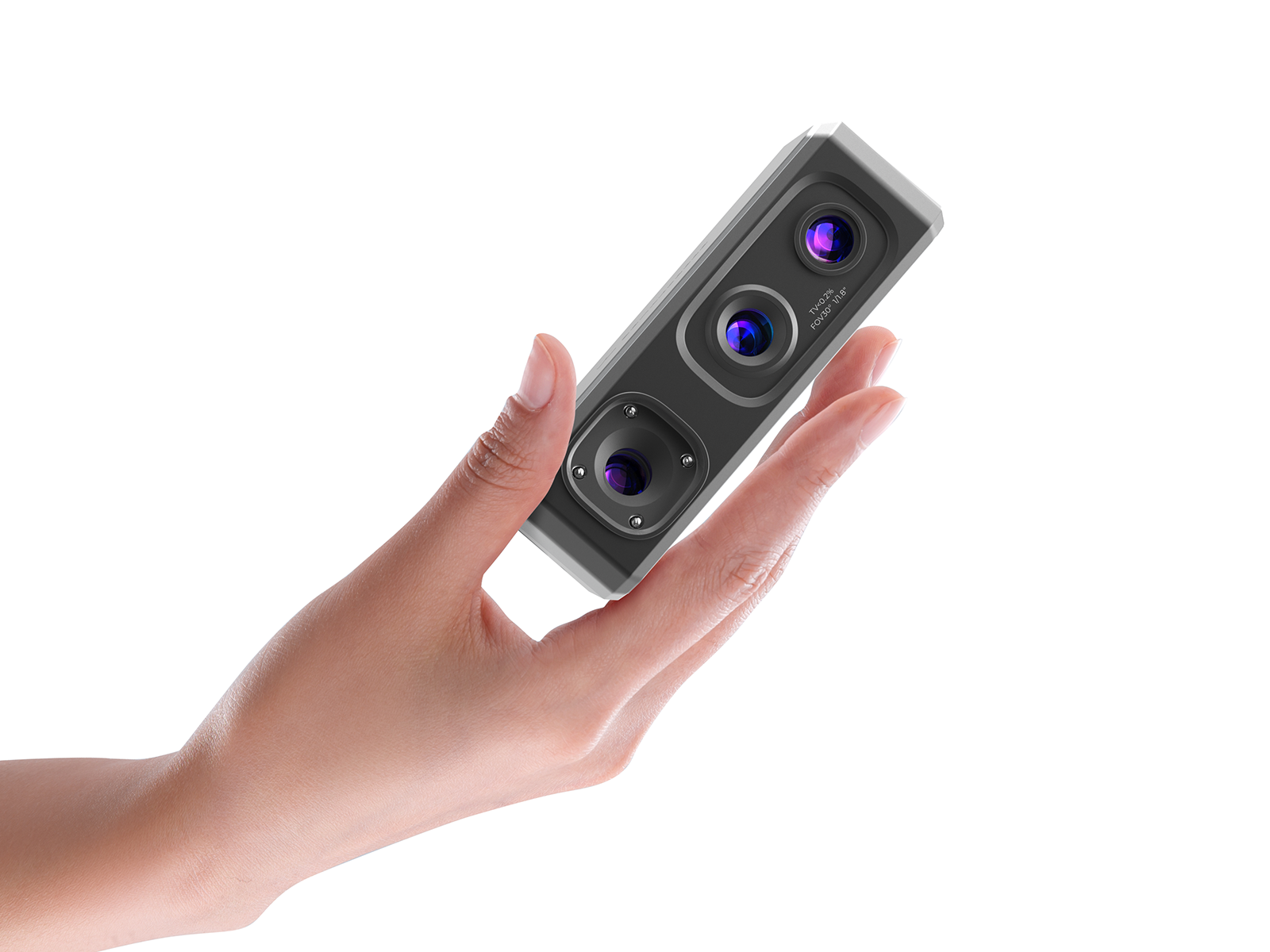

Light & Quiet
Take Seal Lite's 226g lightweight design with you wherever you need to scan! Experience smooth, quiet scanning with excellent heat dissipation and no fan noise.

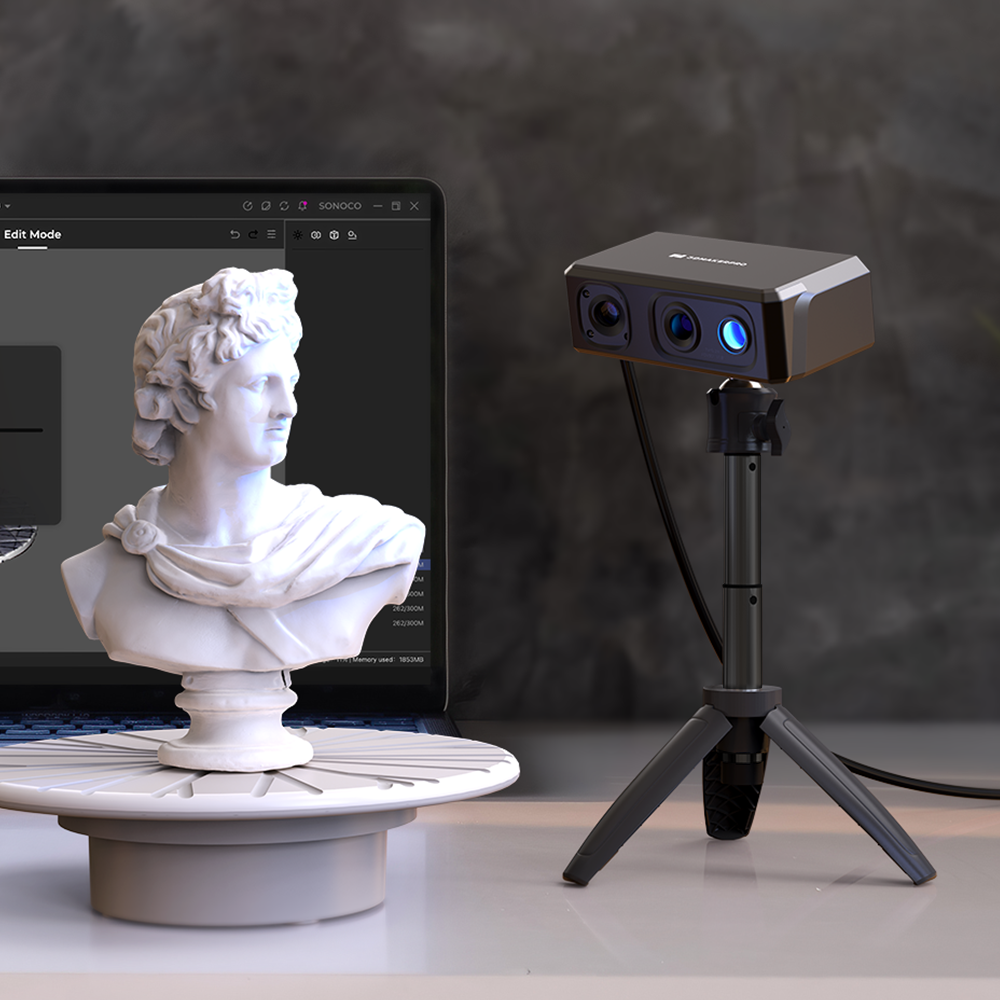

Designed for Easy Scanning
Scan quality depends heavily on software, which is why our proprietary JMStudio is essential. Years of continuous iteration have resulted in enhanced scanning and editing capabilities. Support for 8 languages and lifetime free OTA updates.

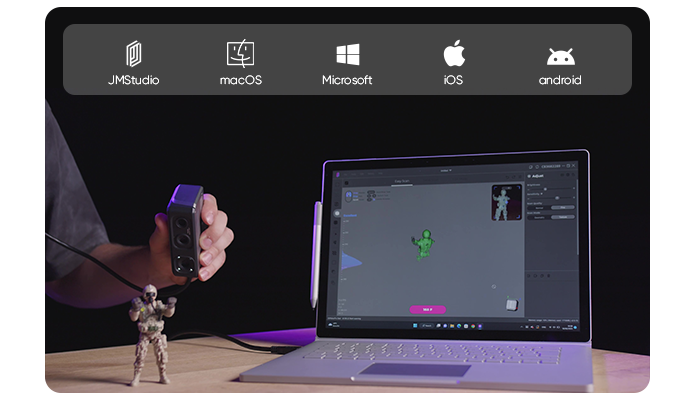

Compatible Software
JMStudio supports exporting files in formats like OBJ, STL, ASC, empowering you to edit, refine, render, or print your scans using your preferred design software.
Intelligent Accessories
3D Scanning Redefined through Intelligence

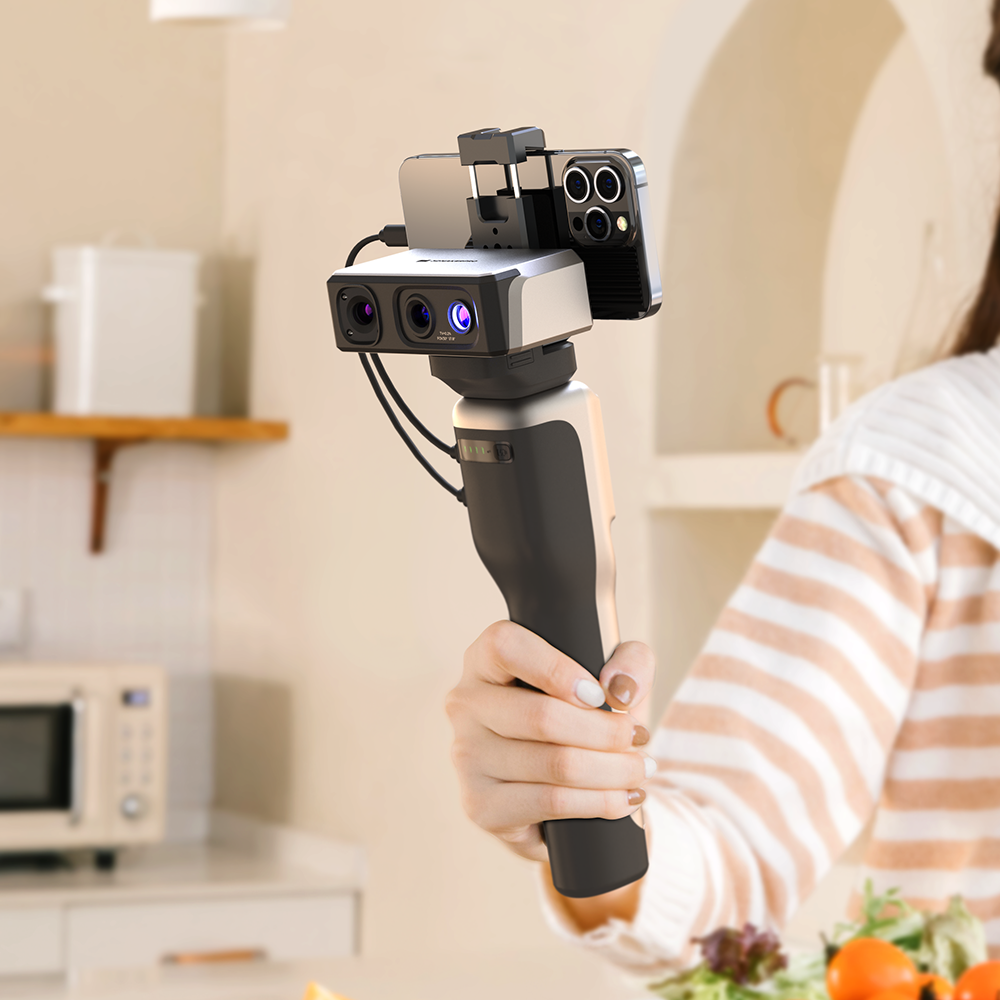

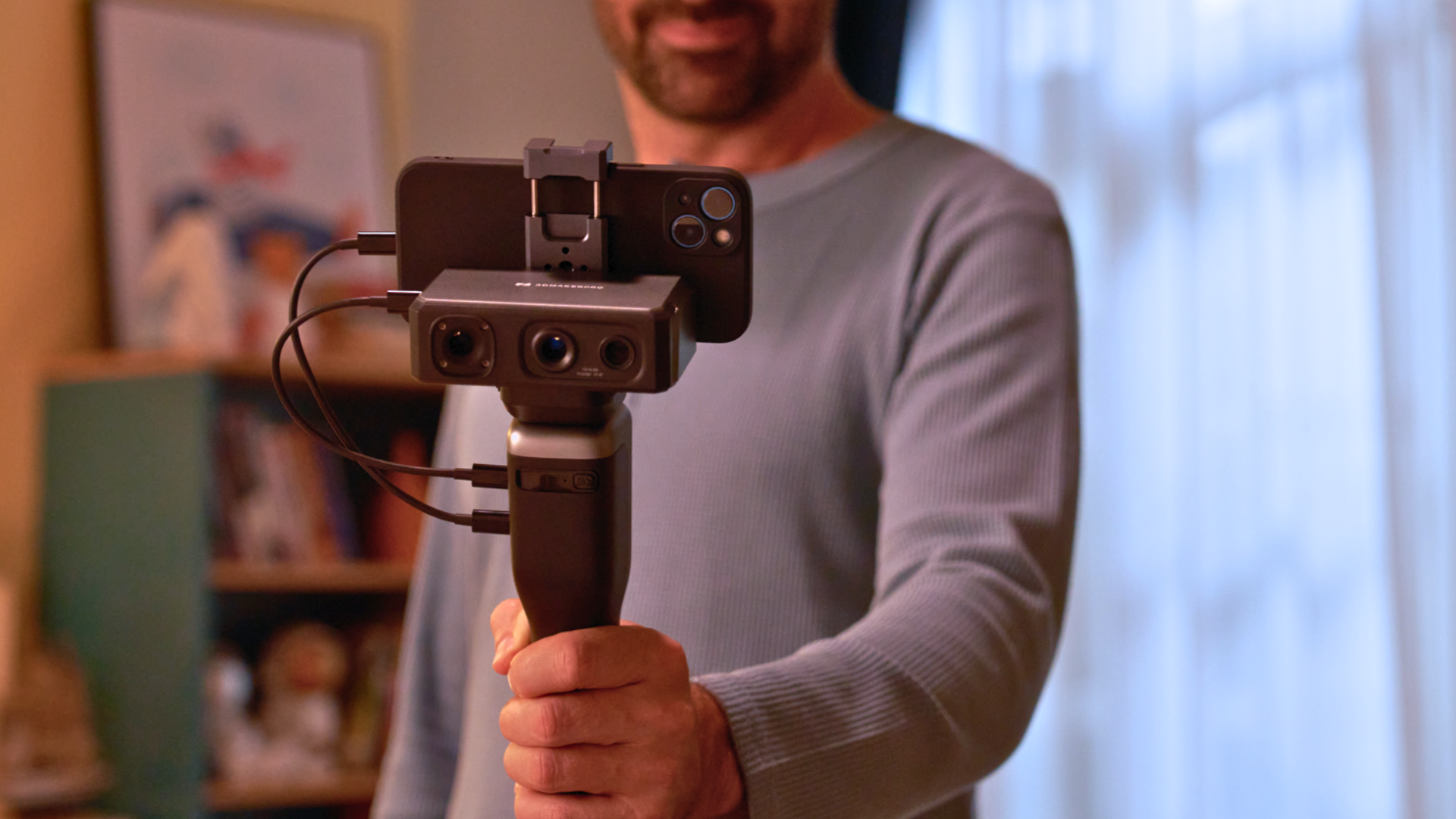

Smart Grip
Smart Grip connects Seal to your smartphone, enabling on-the-go scanning.

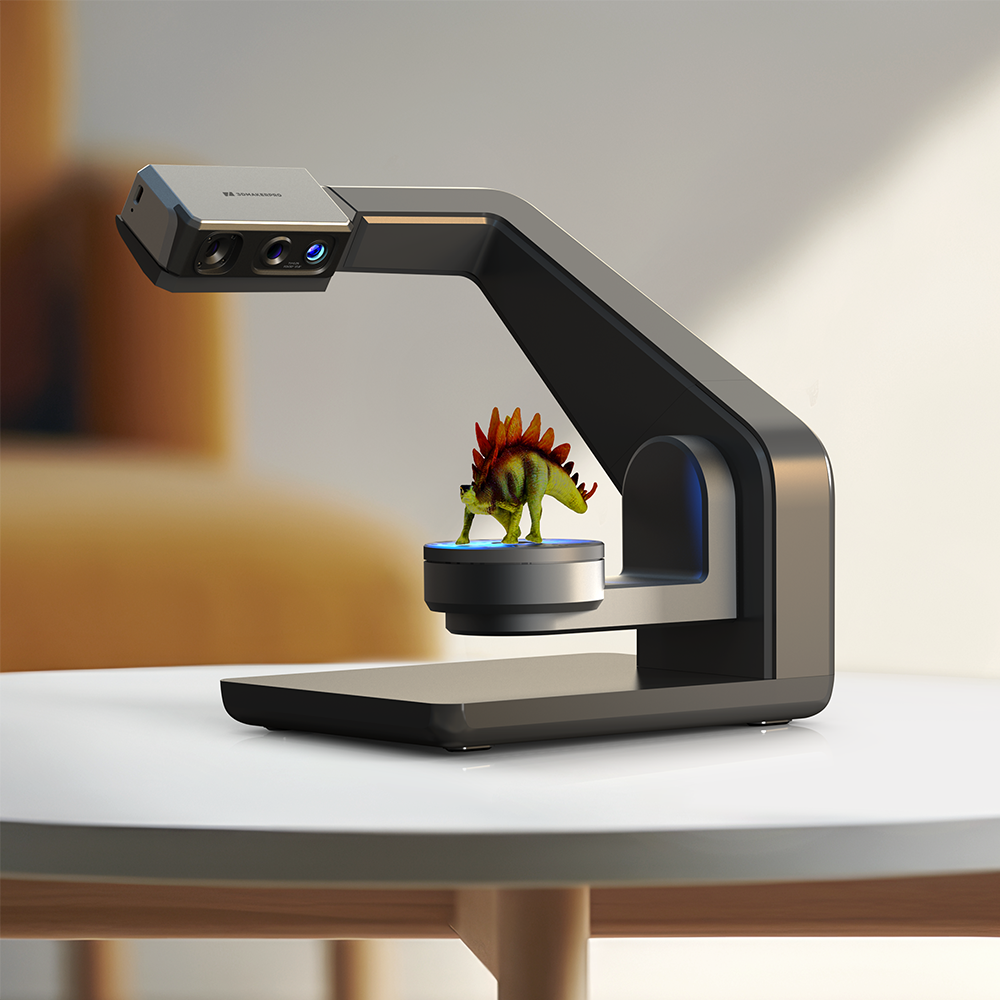

Multi-Axis Turntable
Easily scan objects with automation that lets beginners scan like a pro, and advanced customization with script editing for experts.
Tech Specs
Seal Lite 3D Scanner
Scan Performance Parameters:
- Accuracy: 0.02mm
- Resolution: 0.07mm
- Frame rate: 10fps
- Tracking mode: Visual tracking
- Work distance: 180-280mm
- Single capture range: 100x75mm
- Typical object sizes: 10-300mm
- Surface Treatment Recommendations: Certain surfaces and materials, such as transparent, reflective, or those hairy area may require a scanning spray for optimal scanning results.
Software System Requirements:
- Output format: OBJ/STL/PLY/ASC
- Compatible system: Windows10/11 64bit, MacOS12/13
- Compatible mobile: Android 10.0 or later, iOS 15.0 or later (Extended support)
- Minimum computer requirements: Intel Core i5 8th, 16GB RAM MX250 GPU with 2GB VRAM
- Recommended computer requirements: Intel Core i7 8th, 16GB RAMNVDIA 3060 GPU with 4GB VRAM
Hardware Parameters:
- Light source: Blue light
- Color texture: Mono textures
- USB interface: USB2.0
- Dimensions: 110×60×35mm
- Weight: 226g
Scan Performance Parameters:
- Accuracy: 0.02mm
- Resolution: 0.07mm
- Frame rate: 10fps
- Tracking mode: Visual tracking
- Work distance: 180-280mm
- Single capture range: 100x75mm
- Typical object sizes: 10-300mm
- Surface Treatment Recommendations: Certain surfaces and materials, such as transparent, reflective, or those hairy area may require a scanning spray for optimal scanning results.
Software System Requirements:
- Output format: OBJ/STL/PLY/ASC
- Compatible system: Windows10/11 64bit, MacOS12/13
- Compatible mobile: Android 10.0 or later, iOS 15.0 or later (Extended support)
- Minimum computer requirements: Intel Core i5 8th, 16GB RAM MX250 GPU with 2GB VRAM
- Recommended computer requirements: Intel Core i7 8th, 16GB RAMNVDIA 3060 GPU with 4GB VRAM
Hardware Parameters:
- Light source: Blue light
- Color texture: Mono textures
- USB interface: USB2.0
- Dimensions: 110×60×35mm
- Weight: 226g
What's in the Box
Seal Lite 3D Scanner
 |
 |
 |
|
Seal Lite 3D scanner × 1
|
PD65W charger × 1
|
Data cable × 1
|
|
|
|
|
Seal Lite 3D scanner × 1
|
PD65W charger × 1
|
Data cable × 1
|
Which model is right for you?
0.02mm
0.01mm
0.07mm
0.05mm
Mono texture
24-bit color texture
226g
254g
Plastic
Aluminum alloy
Questions? We've got answers
Do I need to purchase scanning software separately?
No, our software JMStudio is developed in-house and is free to use. It supports 8 major languages and includes scanning, point cloud editing, intelligent point cloud optimization, multi-point cloud alignment, point cloud fusion, and export in OBJ/STL/PLY/ASC formats, and more.
Is professional training required?
We offer comprehensive beginner guides (many can even skip these guides and start scanning directly), along with clear scanning prompts. Focus on scanning, not adjusting parameters.

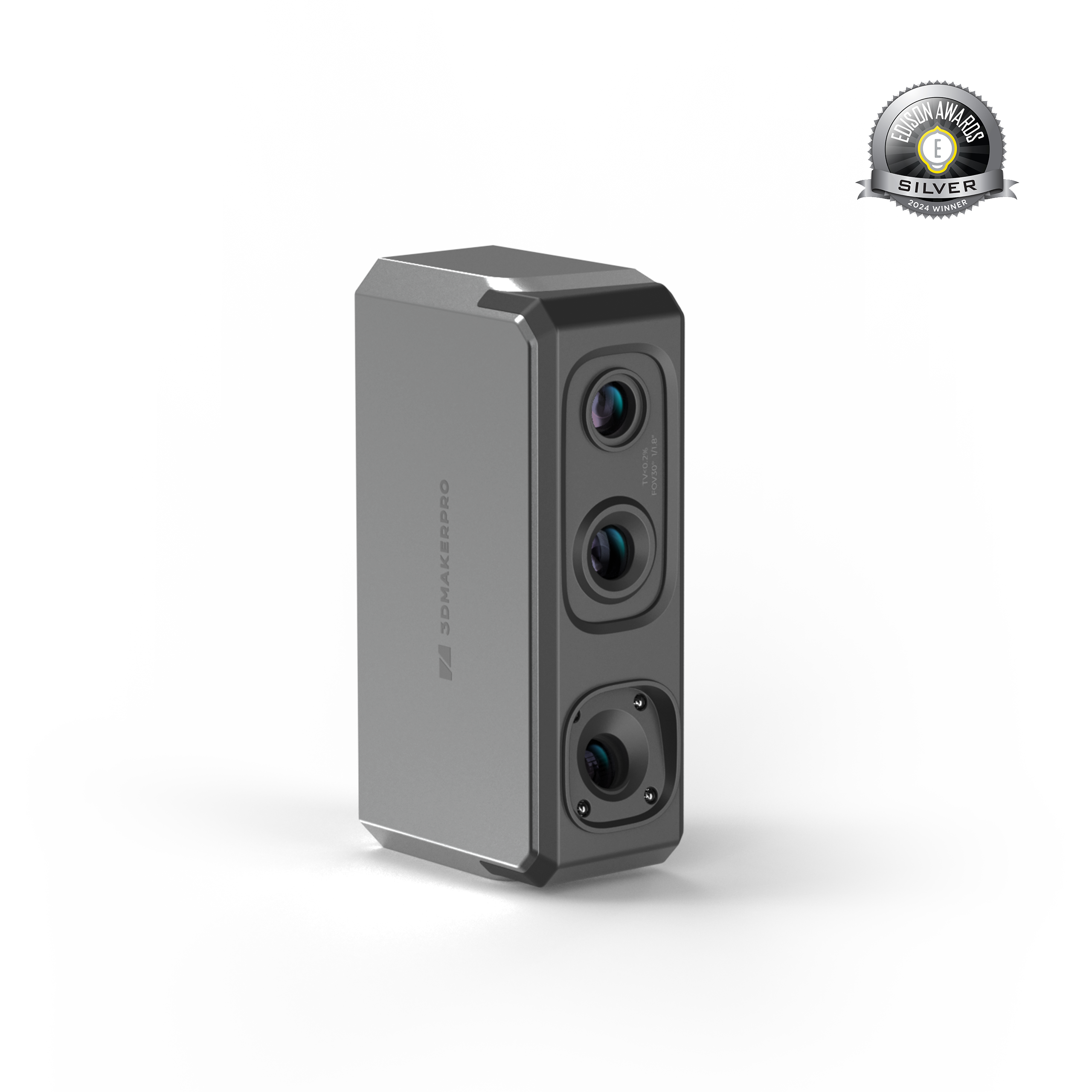

What's the difference between Seal and Seal Lite?
Seal supports color texture models and features an aluminum alloy casing. Seal Lite has a plastic casing. Additionally, Seal offers better accuracy and resolution compared to Seal Lite.
Can we directly 3D print the scanned models?
Yes, STL files can be directly imported into all slicing applications.
Can an NVIDIA 1060 graphics card handle the software?
Yes, a 1060 is our recommended configuration. The minimum requirements are Intel Core i5 8th gen, 16GB RAM, and integrated graphics.
Is applying markers necessary for scanning?
Seal/Seal Lite use 3DMakerpro's visual tracking technology and require no markers for scanning.
Which operating systems are supported by the scanning software?
Windows 10/11 64-bit, MacOS 12/13, for the mobile side used to connect to Smart Grip: Android 10.0 or later, iOS 15.0 or later.
Is an internet connection needed?
Internet is needed for downloading the scanning software and initial loading of calibration files. Offline operation is supported afterwards.
