Scanner LiDAR Eagle
- 8K Ultra Imaging
- Up to 140m Scan Range
- Up to 2cm Accuracy
- All-in-one Workflow
Tasse escluse.
Vetro temperato
Treppiede manuale
Antenna RTK e modulo segnale (solo pre-installazione)
Two-year warranty
Free Scanning Software
Shipping info
We will begin shipping orders in sequence from February 20. Typically, orders are shipped within 7–14 days after the order is placed.
Vetro temperato
Il vetro temperato ad alta definizione protegge lo schermo mantenendo la reattività e la precisione del touchscreen.

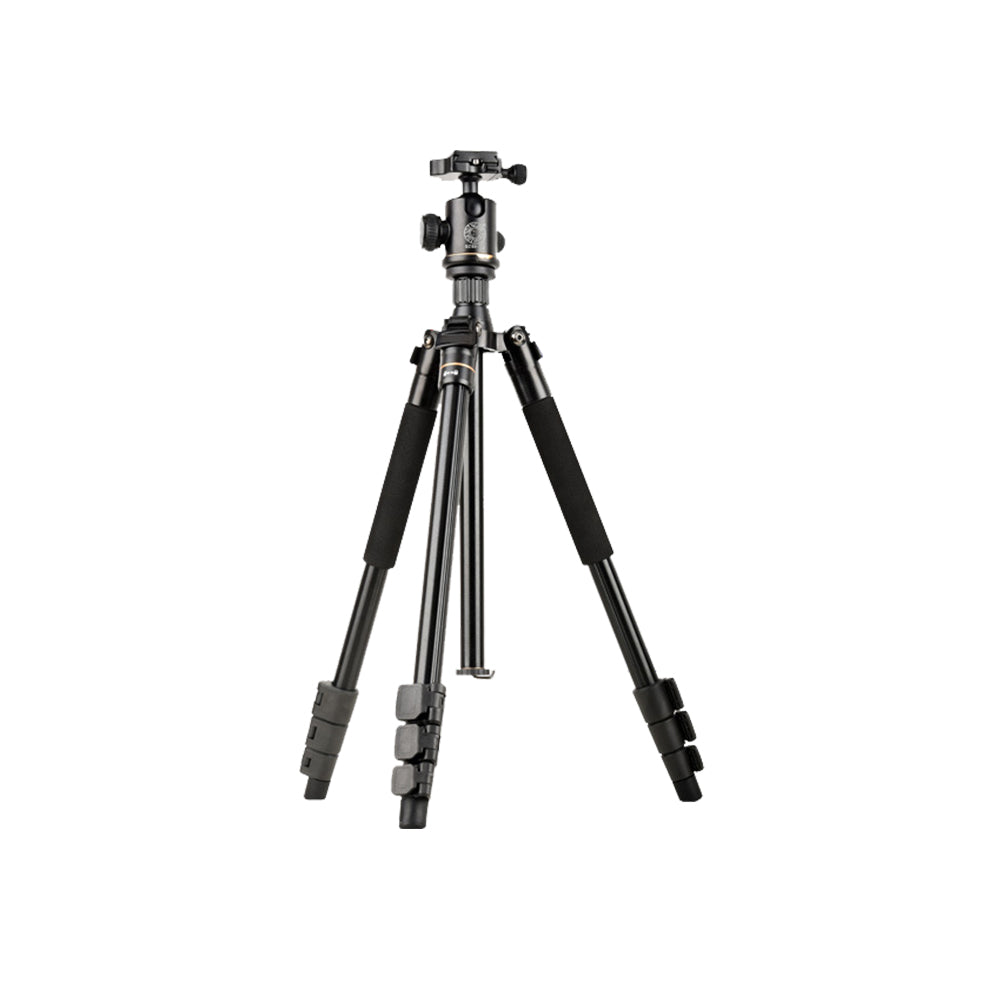

Treppiede manuale
Stabile e portatile, adatto per la raccolta di dati panoramici da un singolo punto.
Antenna RTK e modulo segnale (solo pre-installazione)
Fornisce coordinate GPS ad alta precisione per dati spaziali tridimensionali e può essere utilizzato per attività di rilevamento e mappatura.
Kit per bicicletta
Può consentire di montare il prodotto su una bicicletta o una motocicletta per catturare scene di strada in 3D.
Supporto per tetto per auto
Si fissa sul tetto del veicolo e raccoglie dati stradali in 3D mentre il veicolo è in movimento.
Kit Zaino
Fissare il prodotto sulla testa come se fosse uno zaino per un'acquisizione dati senza ostacoli.

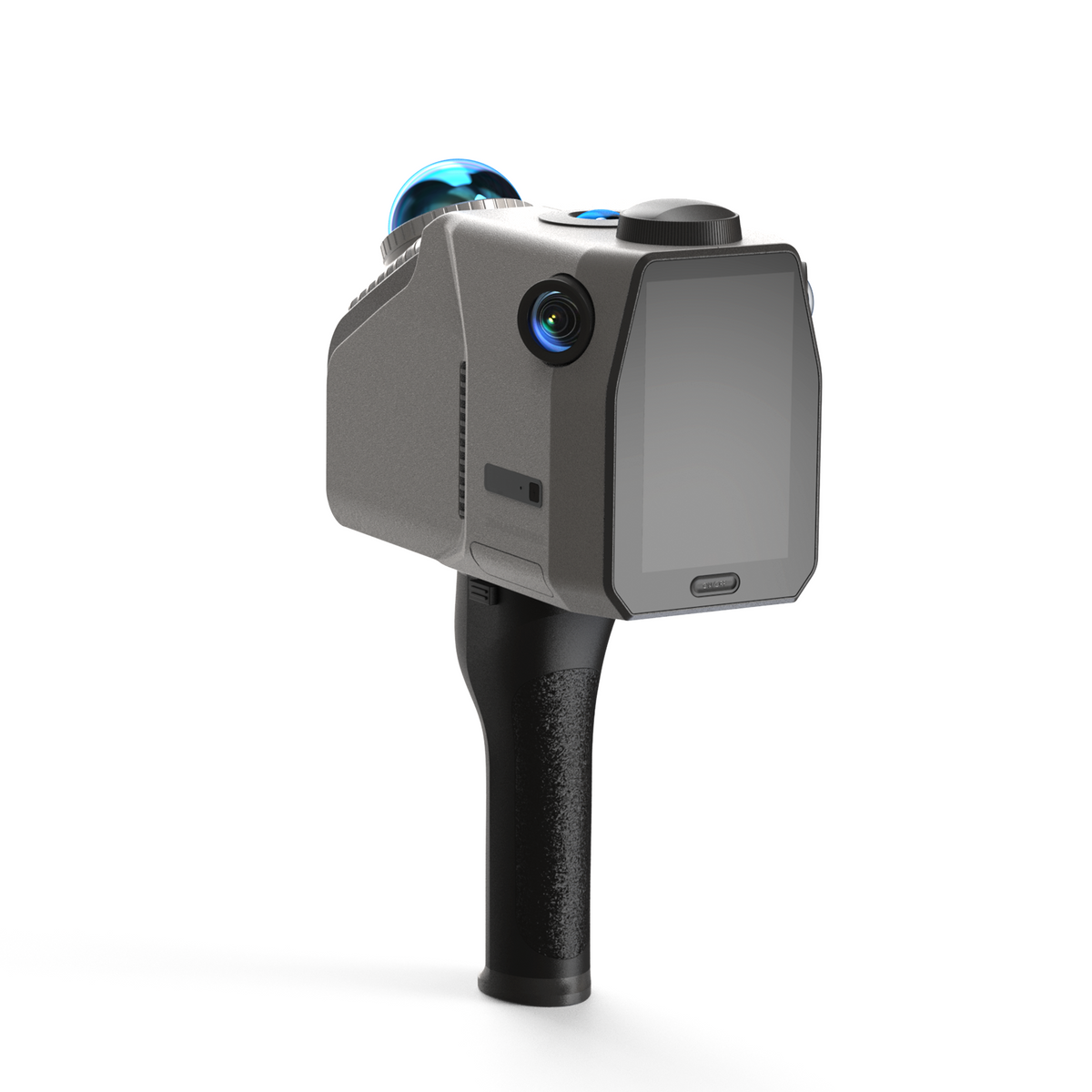

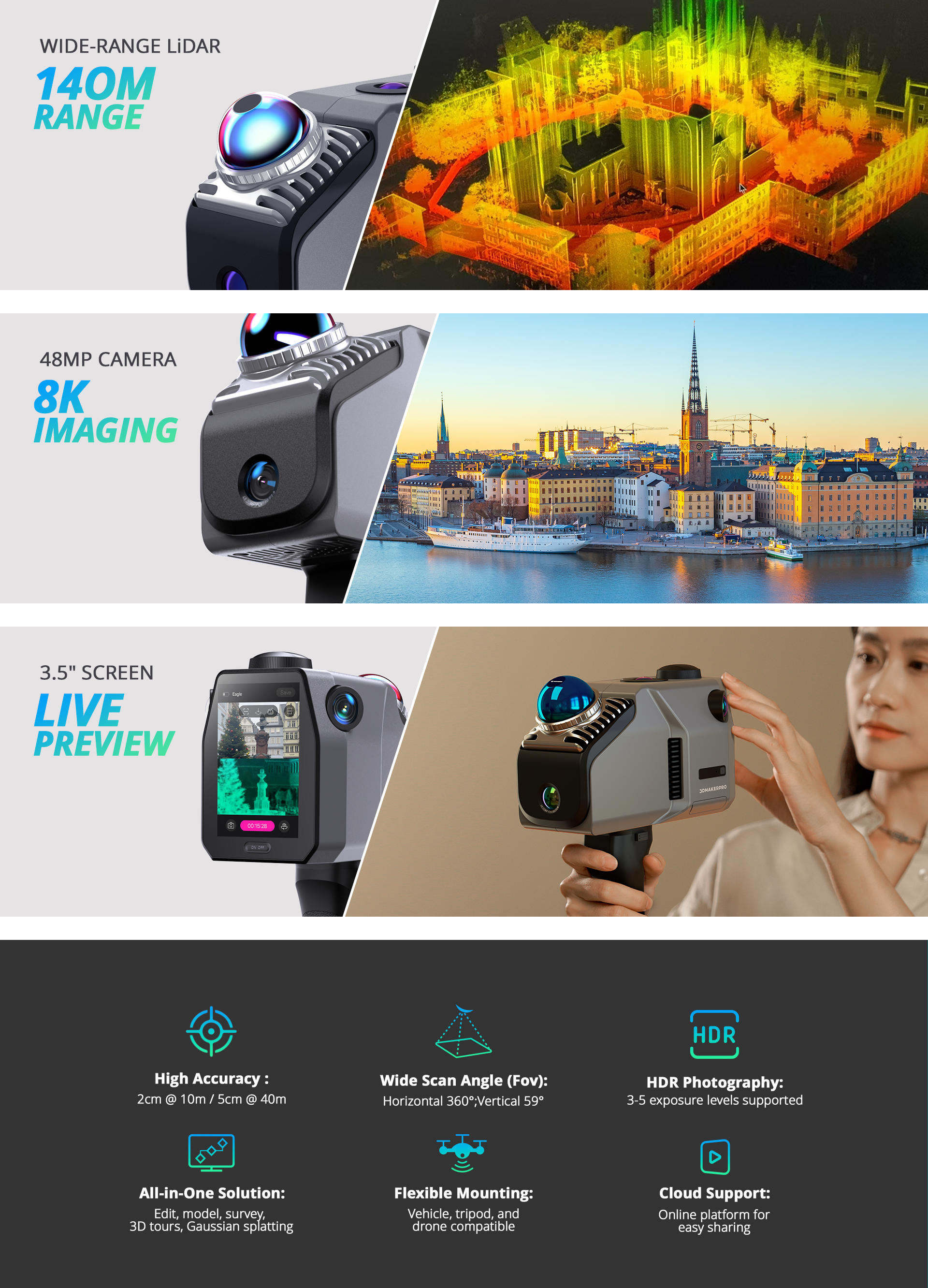

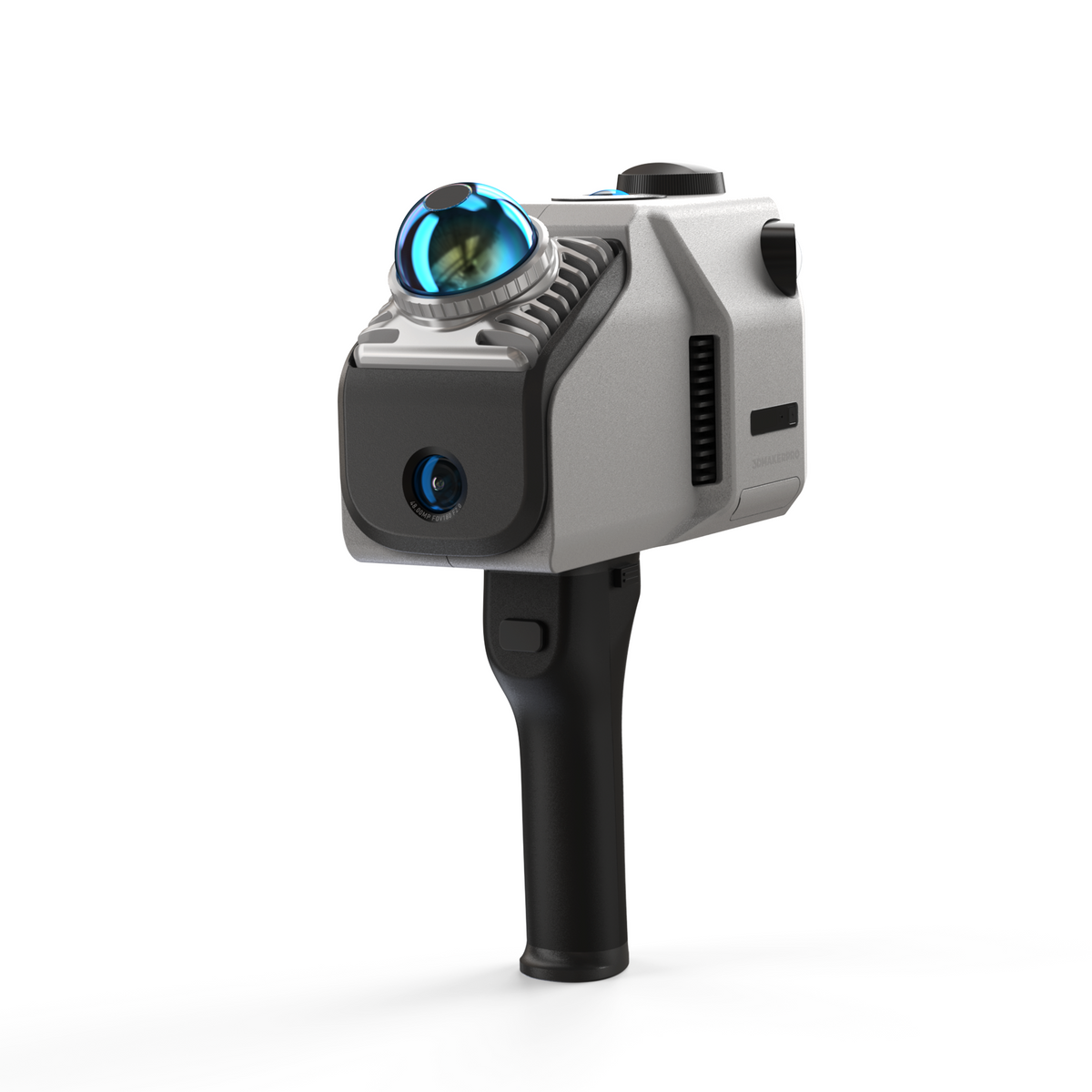

Introducing 3DMakerpro Eagle
Eagle is 3DMakerpro's high-performance spatial scanner, combining high precision, wide coverage, and user-friendly operation. Designed for professionals seeking efficiency and accuracy, Eagle offers an end-to-end solution from data acquisition to 3D production, enabling large-scale 3D scene modeling within minutes. Whether for architectural surveying, film production, or virtual exhibitions, Eagle streamlines the entire process into a one-stop experience.
High-Performance Spatial Scanning
Eagle is equipped with a high-performance LiDAR system, delivering extensive scanning capabilities while ensuring exceptional precision and coverage angles.
70 M
SCANNING RADIUS
Provides a scanning radius of up to 70 meters under 80% reflectivity conditions.
2 CM
ACCURACY
Achieves scanning accuracy of up to 2CM at a 10-meter distance.
High-Precision, Wide-Range Scanning
With a scanning radius of up to 70 meters (80% reflectivity), Eagle efficiently completes precise modeling of large neighborhoods in just a few minutes.
Ultra-Wide Coverage Angle
Eagle's LiDAR features a field of view of 360°×59°, providing 30% more coverage than standard products on the market. A single, simple rotation is all it takes to fully capture an entire room.
Entering the Era of Colorful Scanning
Eagle comes with up to four 48MP high-resolution cameras, enabling the creation of highly detailed 3D worlds, making it ideal for applications like film production, game development, and virtual exhibitions.
48 MP
CAMERA
Delivers 48MP fisheye detail—4 cameras on MAX, 1 on Standard.
8K HDR
IMAGING
Outputs 8K HDR imaging for vivid colors and dynamic range.
3D Gaussian Splatting
Eagle transforms captured photos into Gaussian distributions to generate highly realistic 3D scenes. The accompanying software creates high-quality Gaussian-Splatting 3D content, compatible with Unreal Engine, allowing for the rapid construction of premium 3D environments.
Immersive Panoramic Tours
Eagle supports pinpoint 8K HDR imaging, delivering stunning light effects and intricate texture details. Create immersive panoramic tours that make your audience feel like they’re truly there.
All-in-one Scanning Solution
Eagle is ready to use right out of the box, allowing users to start scanning immediately. It supports real-time point cloud project browsing and is adaptable for use on various platforms and vehicles.
Ready to Use
No complex calibration is required, saving up to 50% of preparation time compared to traditional devices.

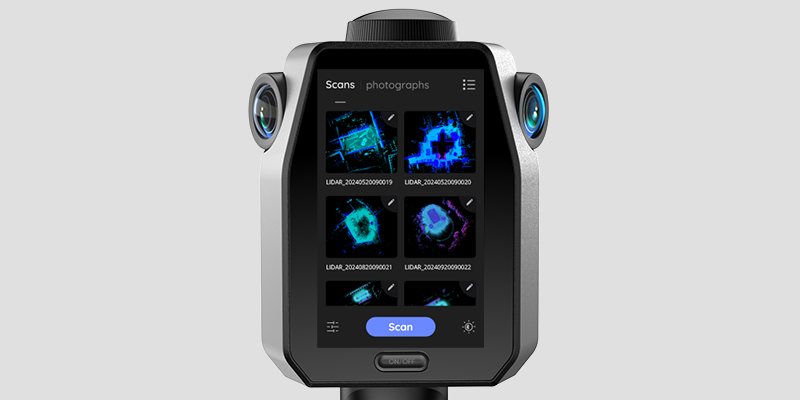

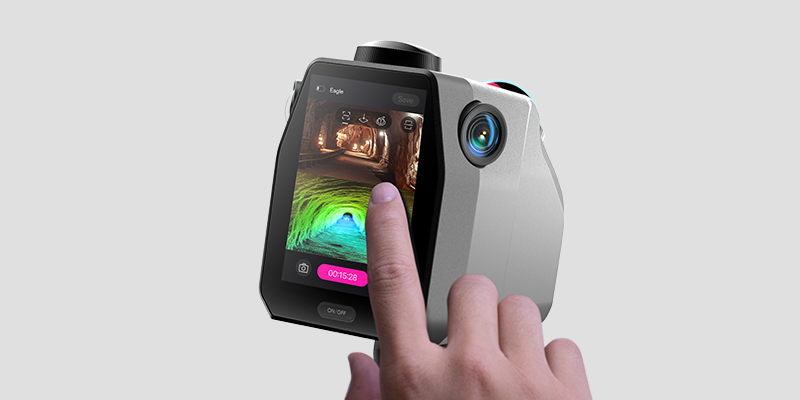

On-Site Review Operations

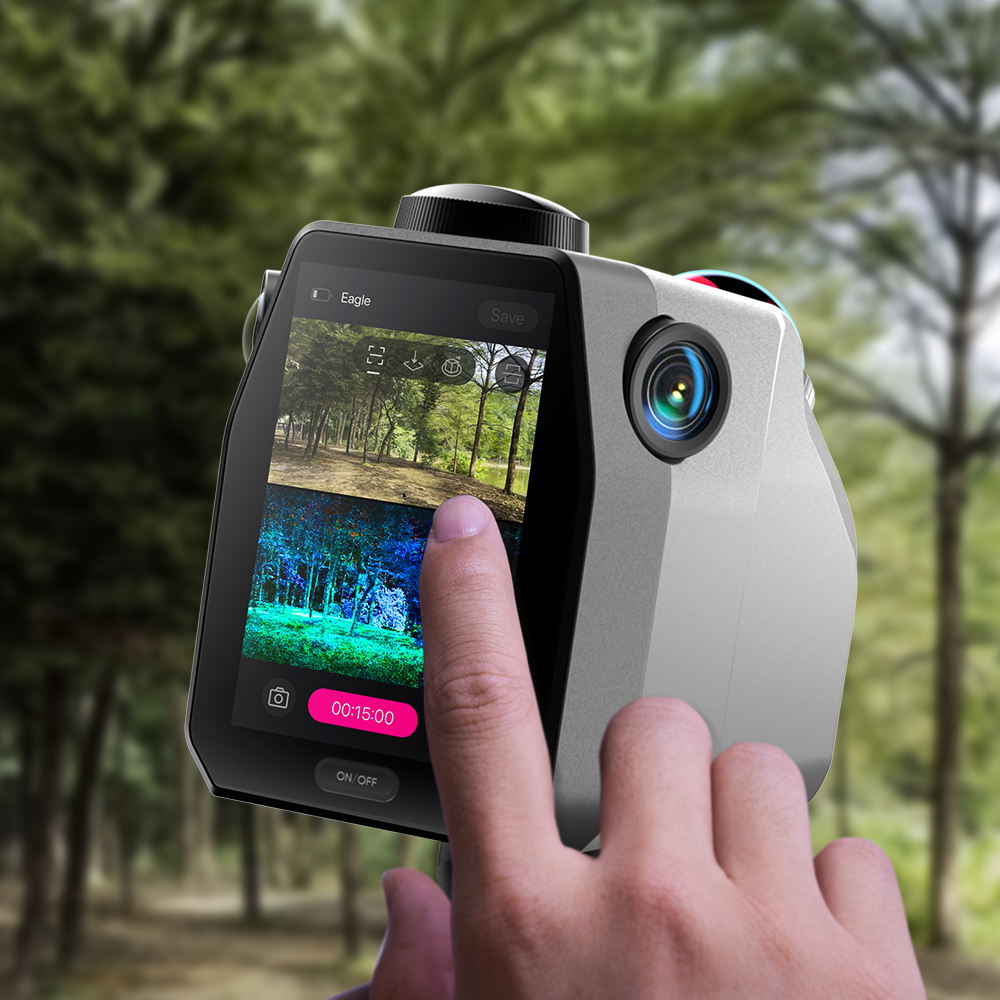

Equipped with a 3.5-inch screen, Eagle offers three real-time display modes during data collection: point cloud, photos, or split-screen point cloud/photos. After collection, users can instantly review point cloud projects, GPS trajectories, and photos.

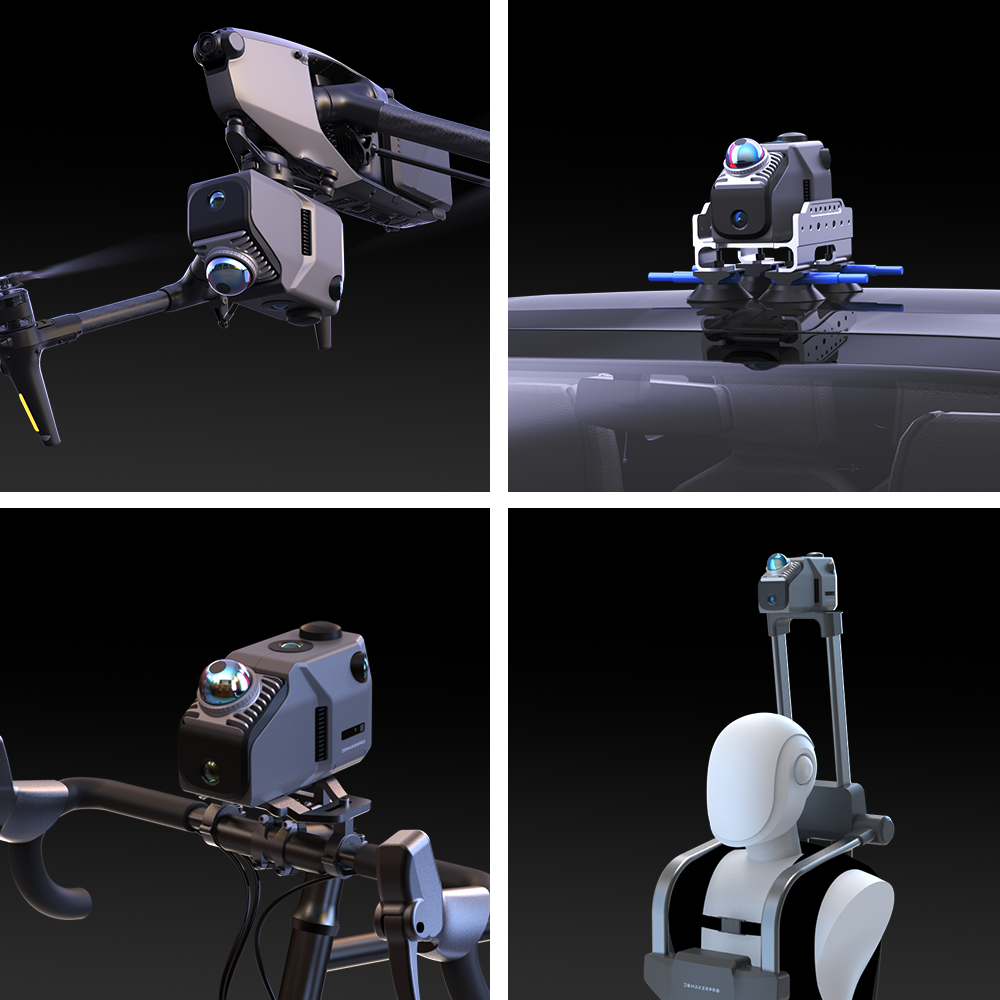

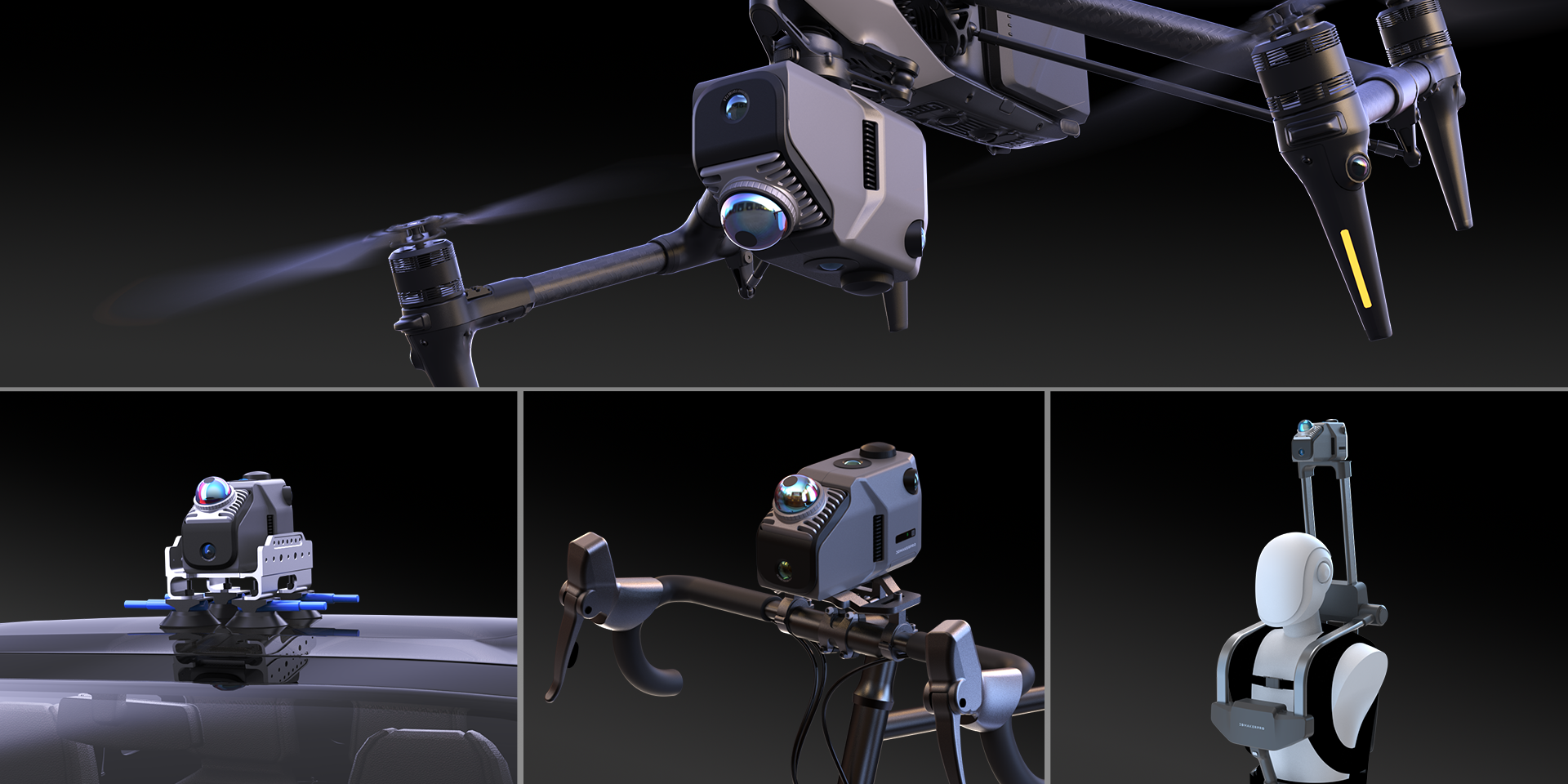

Adaptable to Various Platforms and Vehicles
Eagle collects up to 200,000 points per second, maintaining data quality even at speeds of 20km/h, meeting the needs of dynamic operations across various vehicles.

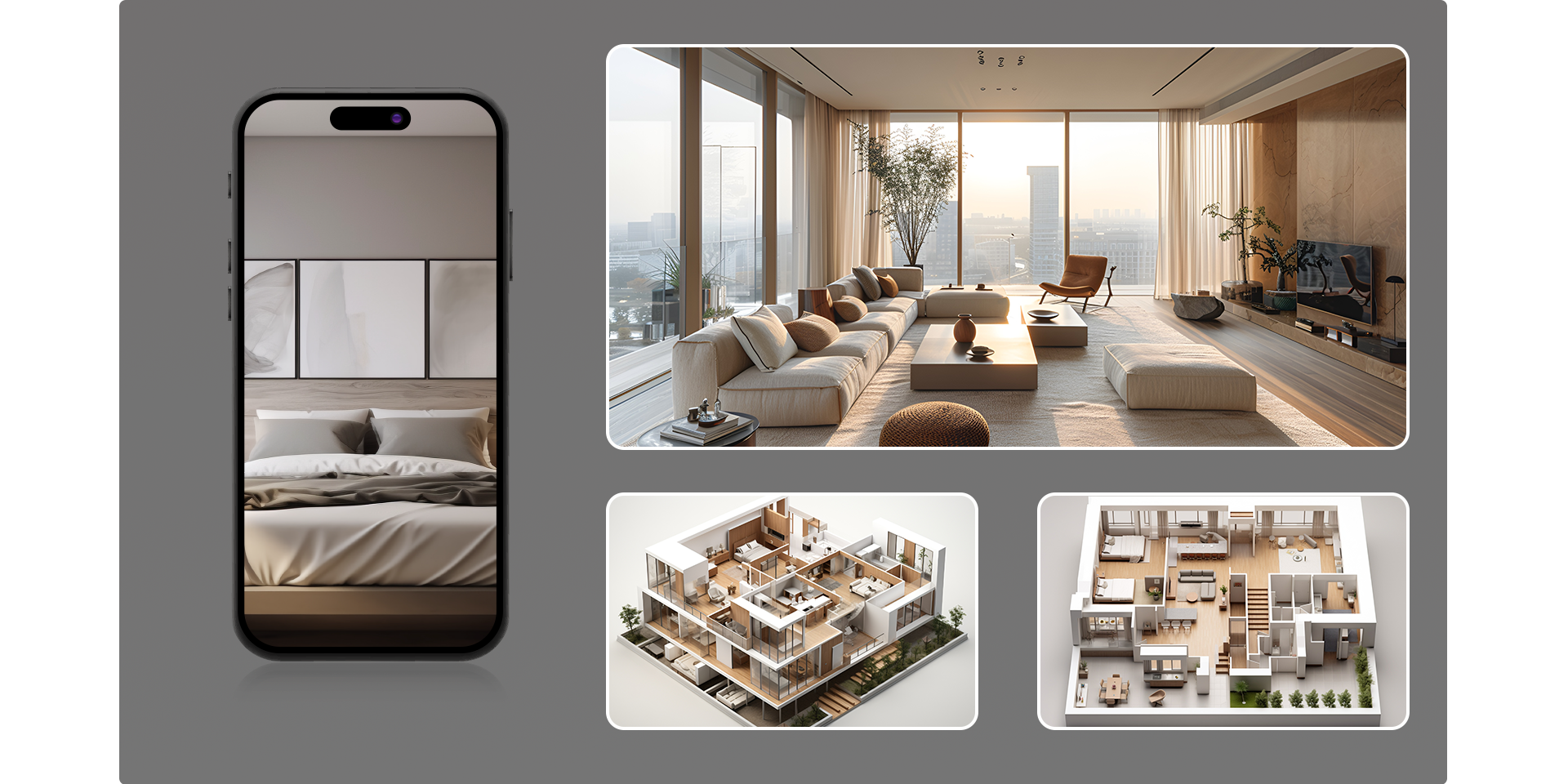

Platform and Software
Whether it’s architectural surveying, film production, or virtual exhibitions, Eagle’s workflow and companion software ensure a seamless experience from point cloud capture to final presentation.
Launching in March
Host and Showcase Your Creations
JIMUMETA allows you to upload and manage your panoramic tours and Gaussian Splatting projects seamlessly. Enjoy both free and commercial service options.

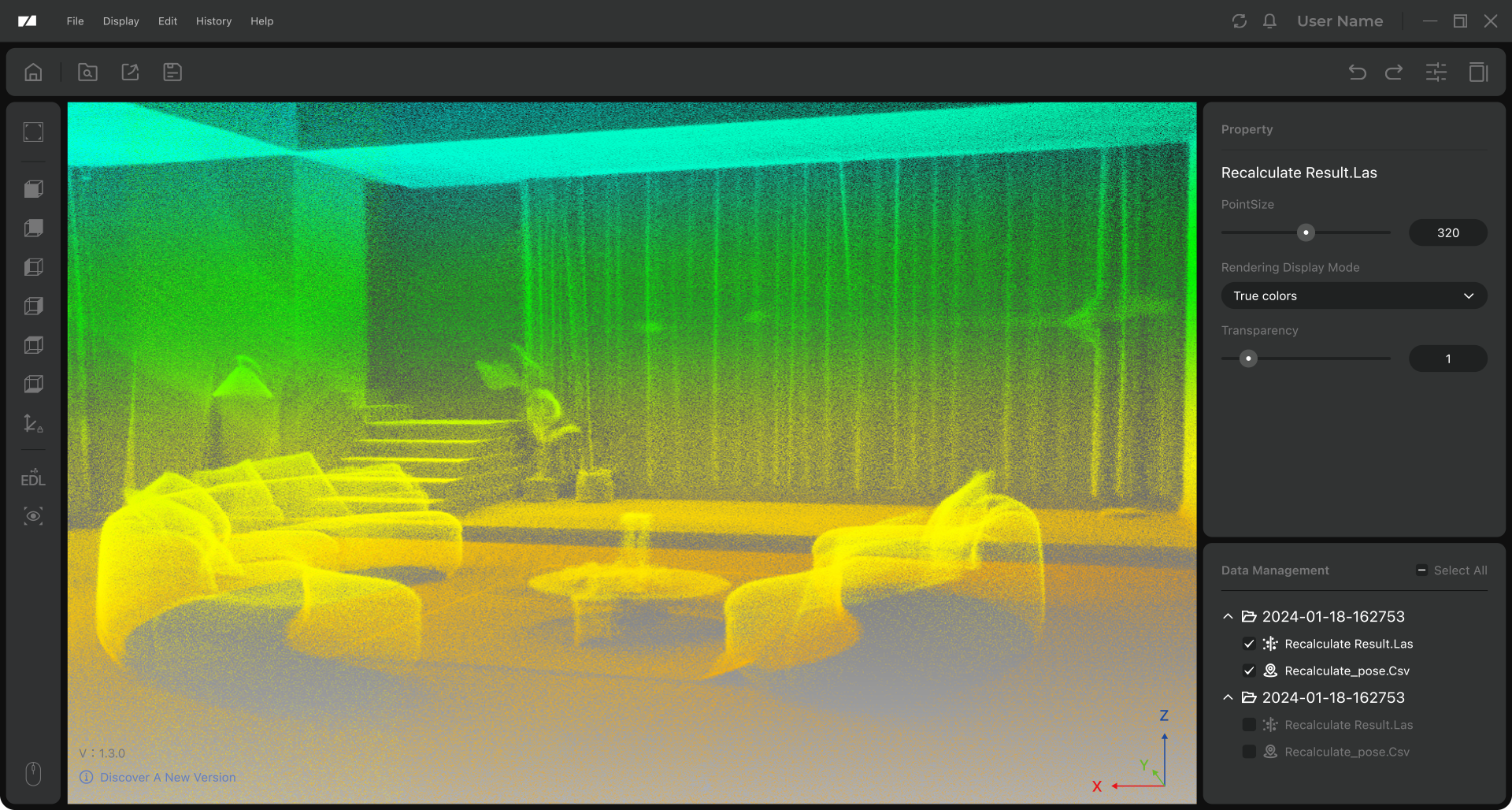

Post-Processing Software
The post-processing software allows users to refine and edit point cloud data, with output formats including PLY, PNG+OBJ, and Gaussian-Splatting PLY (completely free of charge for non-commercial visual sharing), all completely free of charge.
Denoise
One-click noise removal that rapidly clears your point cloud, streamlining your workflow and boosting efficiency.
Optimize
Algorithm-driven point cloud optimization to improve accuracy.

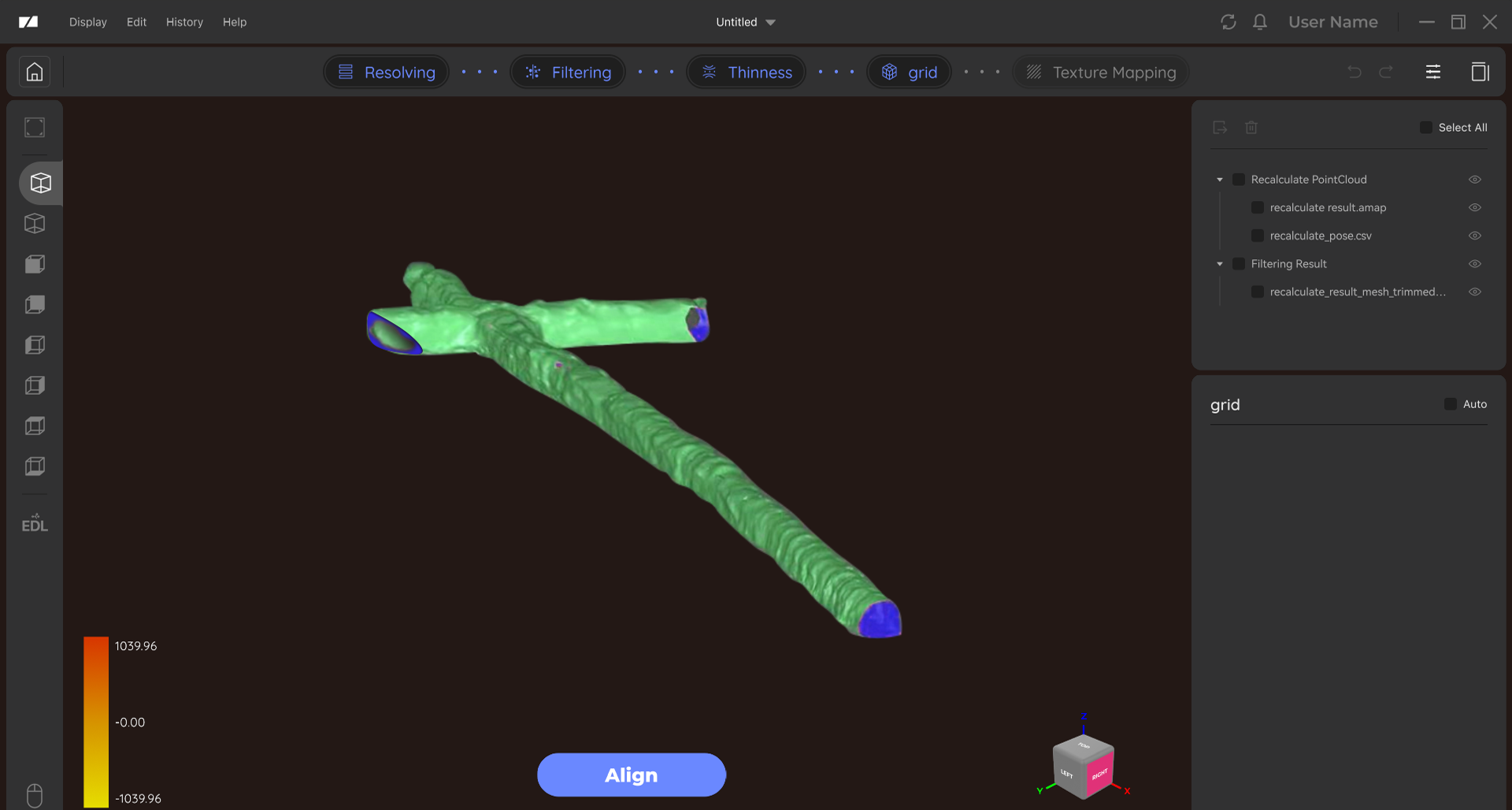

Modeling Software
Eagle includes standalone modeling software for point cloud modeling and surveying.
A free plan is available, covering essential features.
ADD-ONS
Tempered Glass
High-definition tempered glass protects the screen while maintaining responsiveness and touchscreen accuracy.
ADD-ON

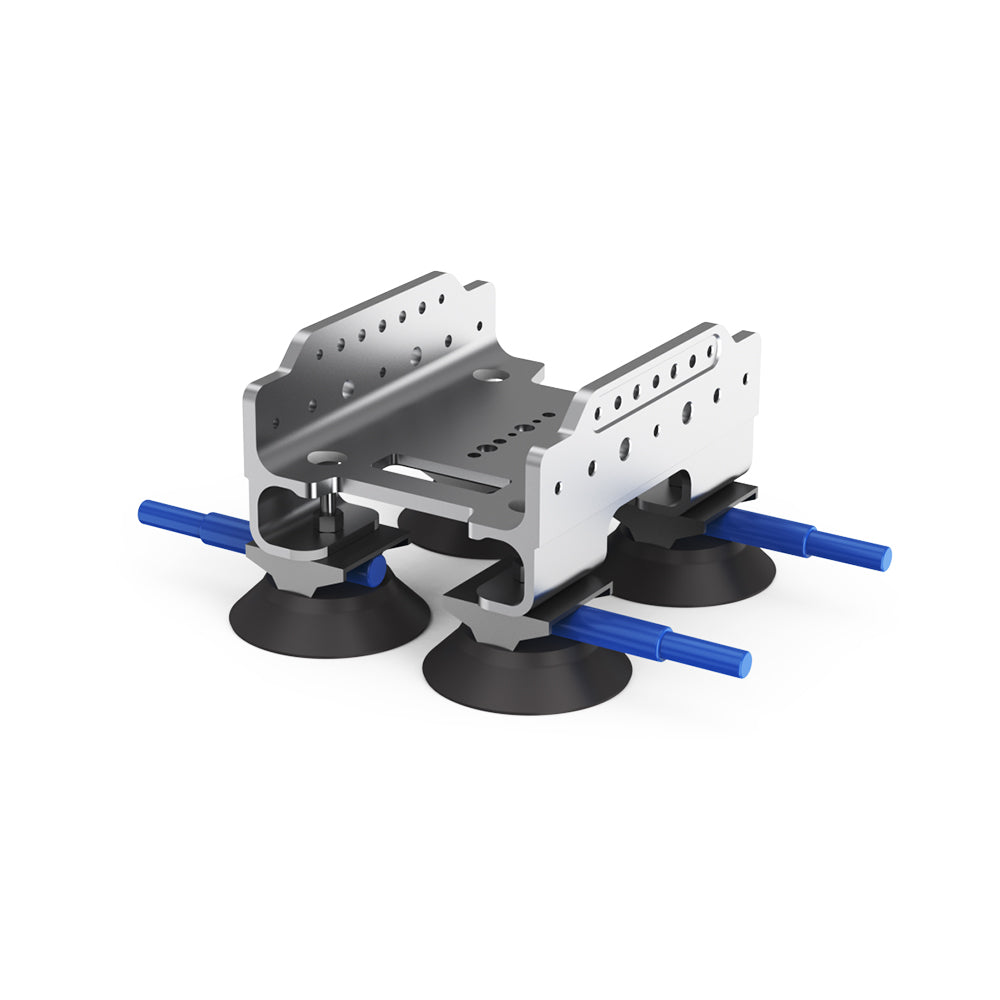

Automotive Rooftop Mount
Attaches to the roof of the vehicle and collects 3D street data while the vehicle is in motion.
ADD-ON

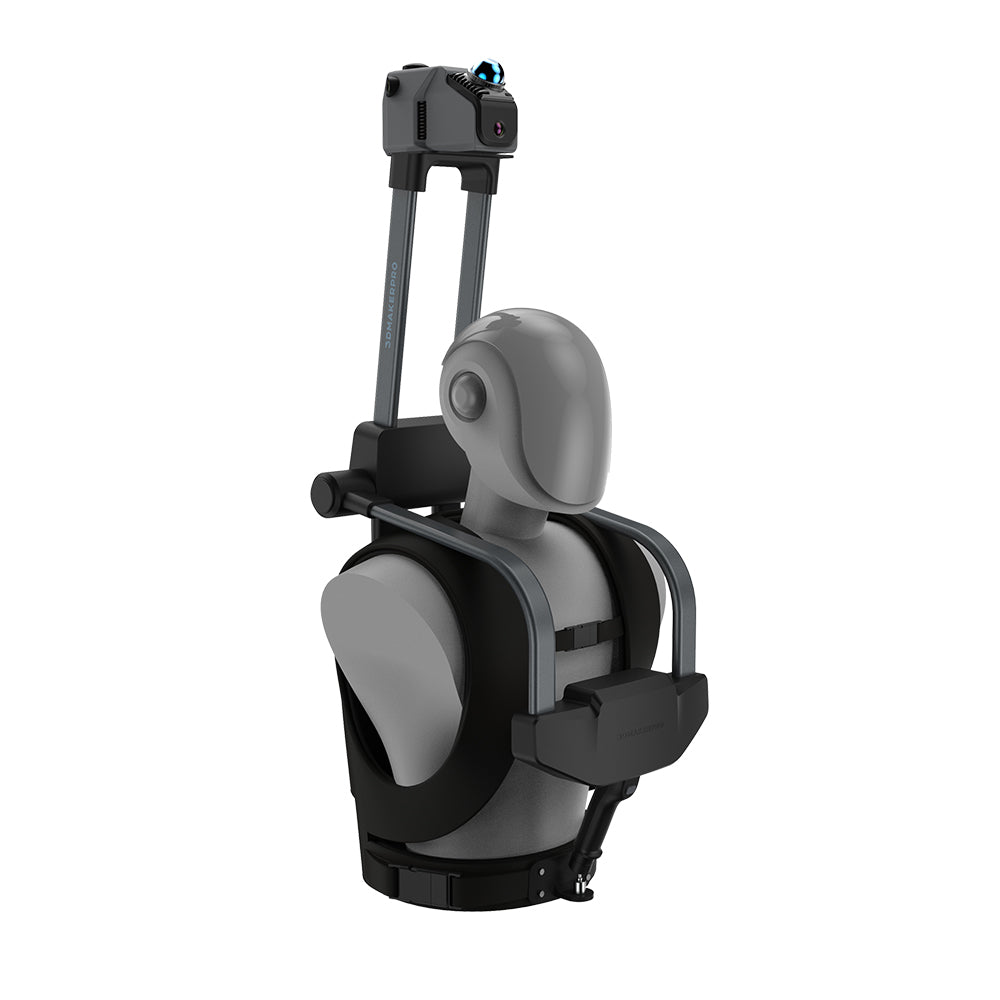

Backpack Kit
Fix the product in the form of a backpack on the head for unobstructed data acquisition.
ADD-ON

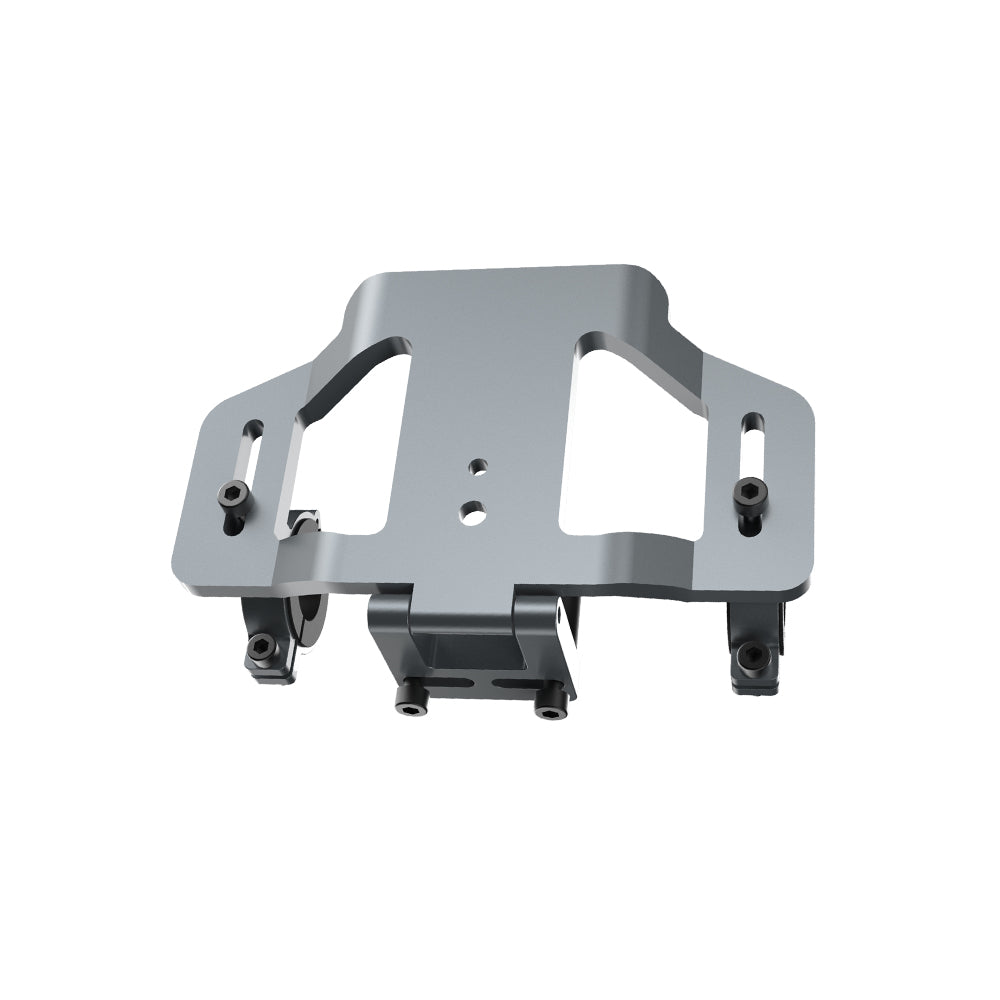

Bicycle Kit
It can allow the product to be mounted on a bicycle or motorcycle to capture 3D street scenes.
ADD-ON
RTK Antenna & Signal Module
It provides high-precision GPS coordinates for three-dimensional spatial data and can be used for surveying and mapping.

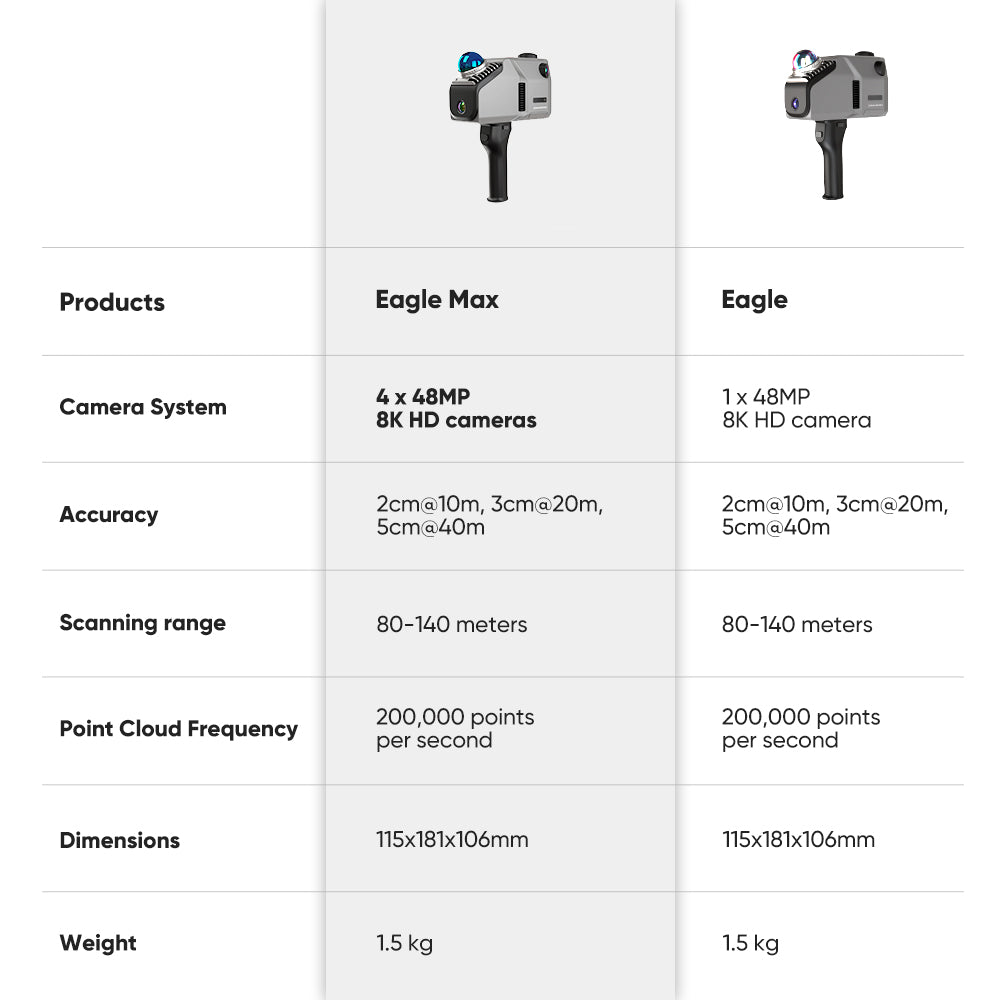

ADD-ONTech Specs
2cm@10m; 3cm@20m; 5cm@40m
40–70m (measured at >10% or >80% reflectivity)
80–140m
Horizontal 360°, Vertical 59°
200,000 points/second
905nm
Class 1 (IEC60825-1:2014)
Supports 3–5 EV
Max Edition:4×48MP fisheye cameras;Standard Edition:1×48MP fisheye camera
8K Panoramic Color Output
80–140m
Wi-Fi5
3.5"
3D Color Point Cloud (PLY); 3D Gaussian Splatting (PLY); 3D Colored Polygonal Model (OBJ); 3D Panoramic Tour Data (OBJ)
12,000mAh (supports 1 hour of work; external power supply supported)
115 × 181 × 106 mm
1.5 kg
8 Cores @ 2.4GHz, 32GB (TF card expansion supported)

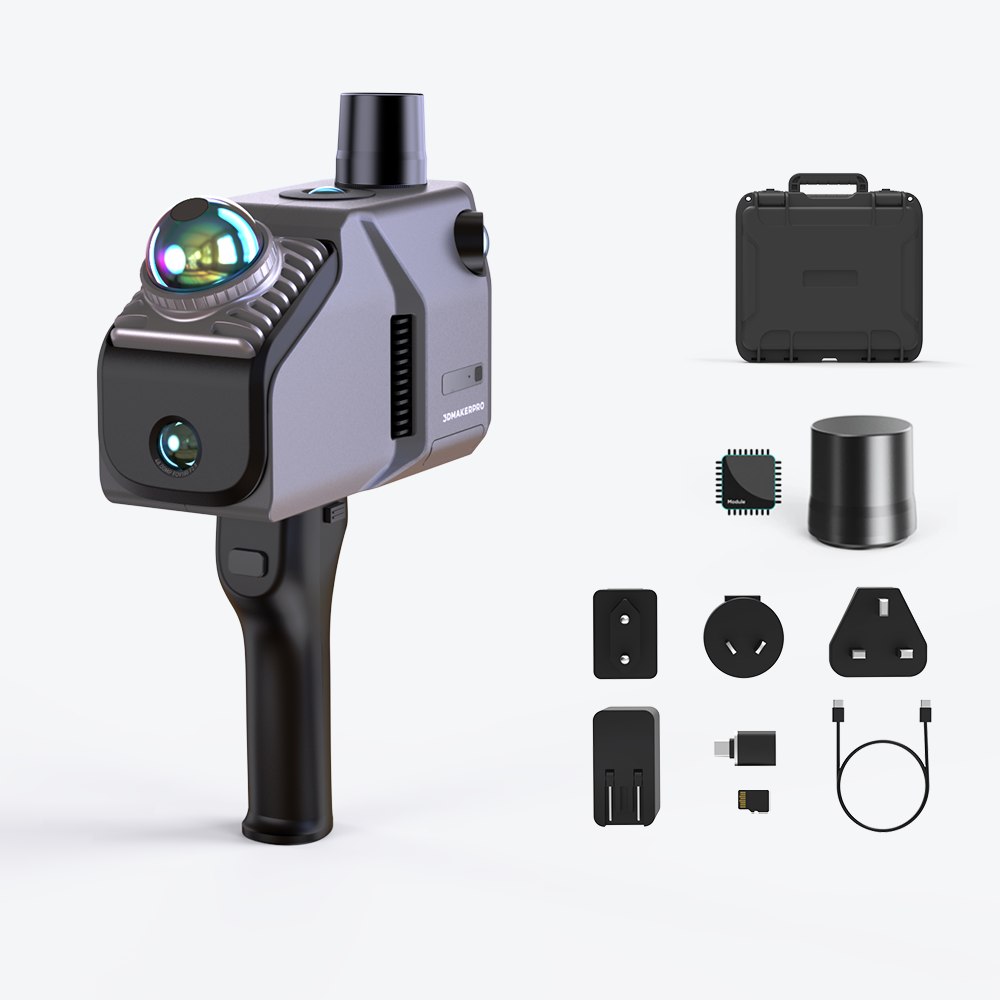

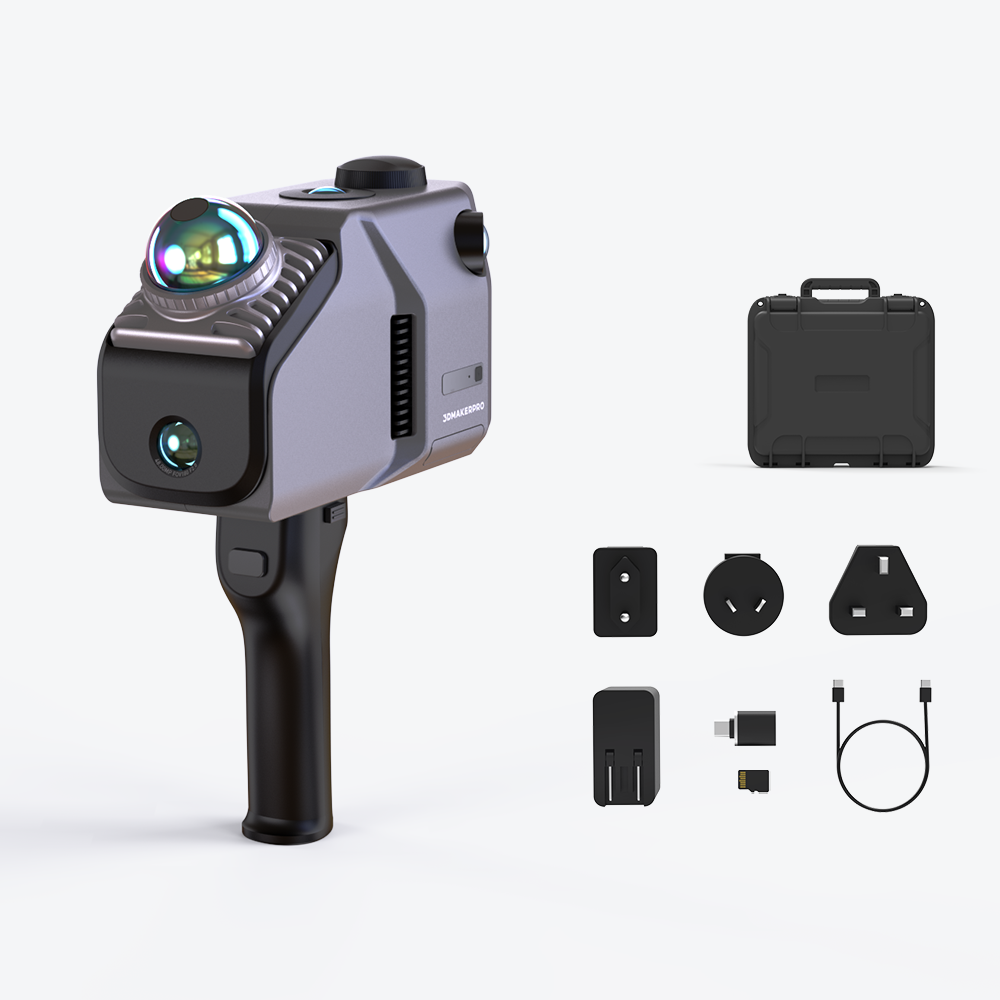

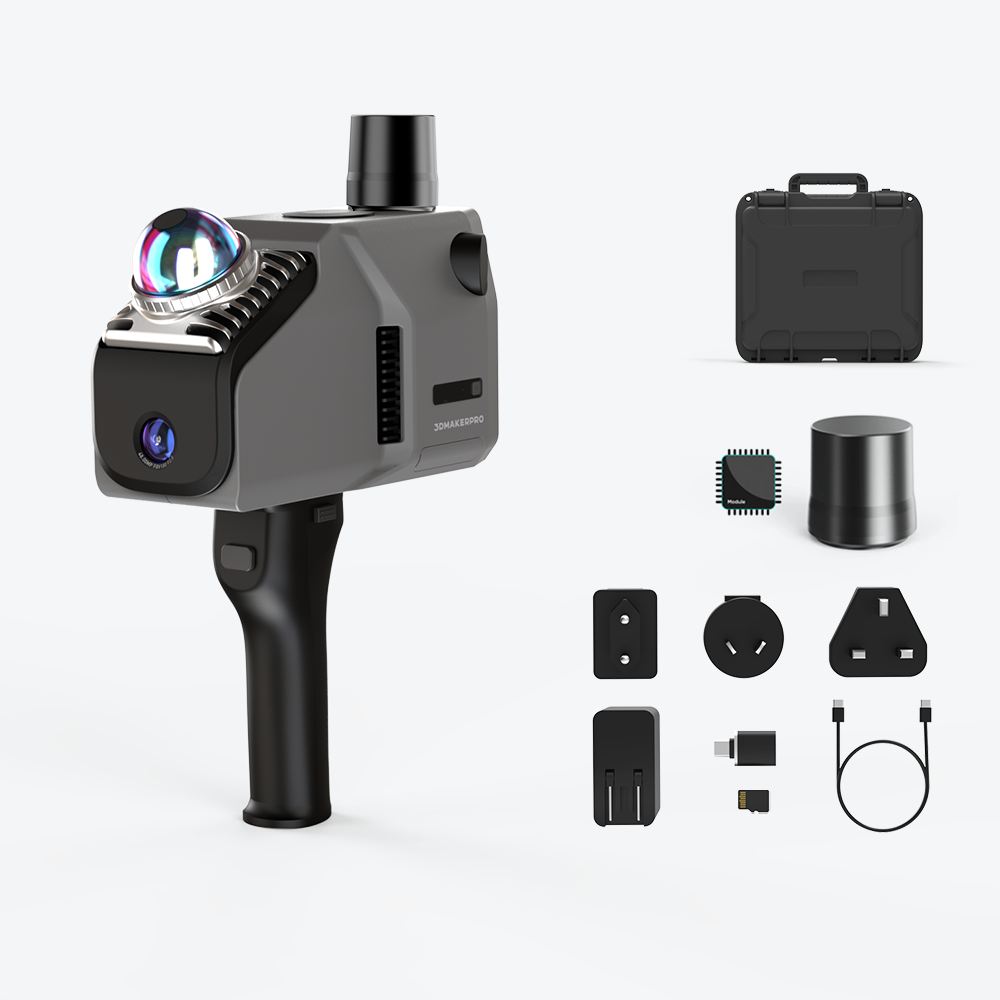

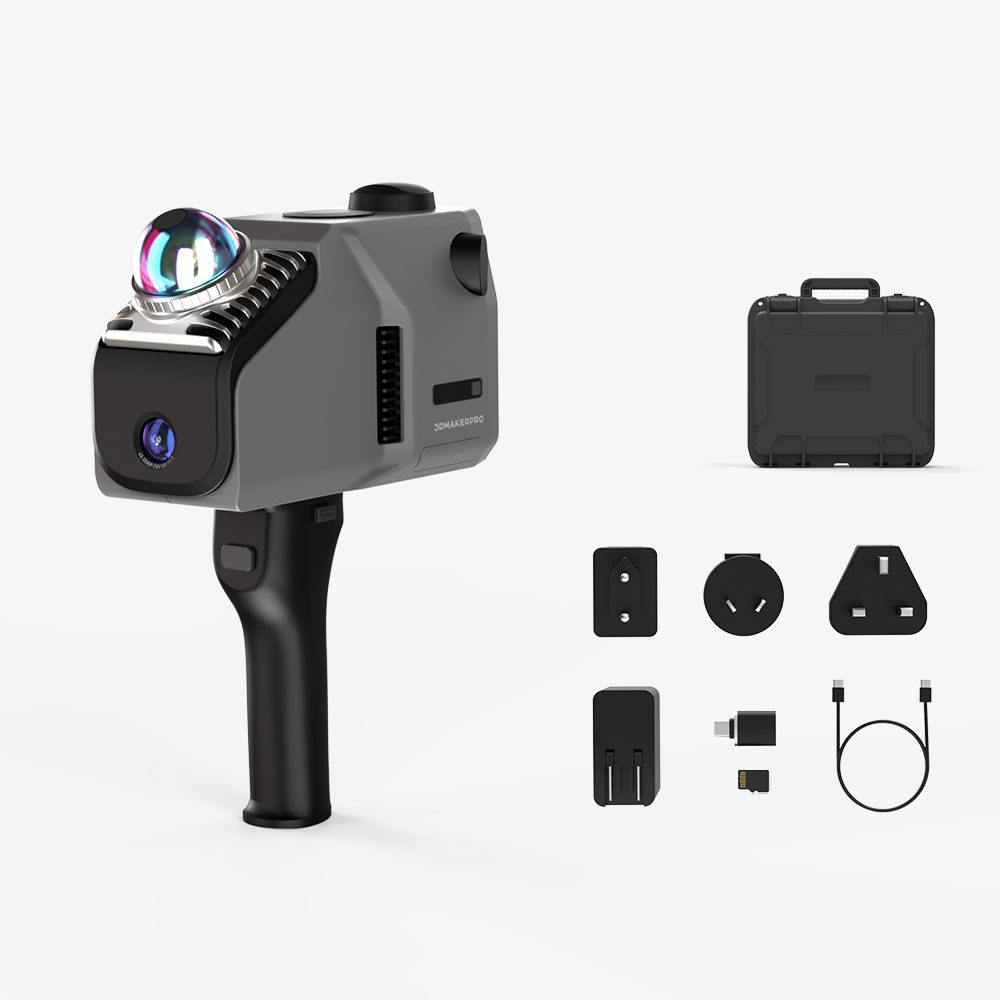

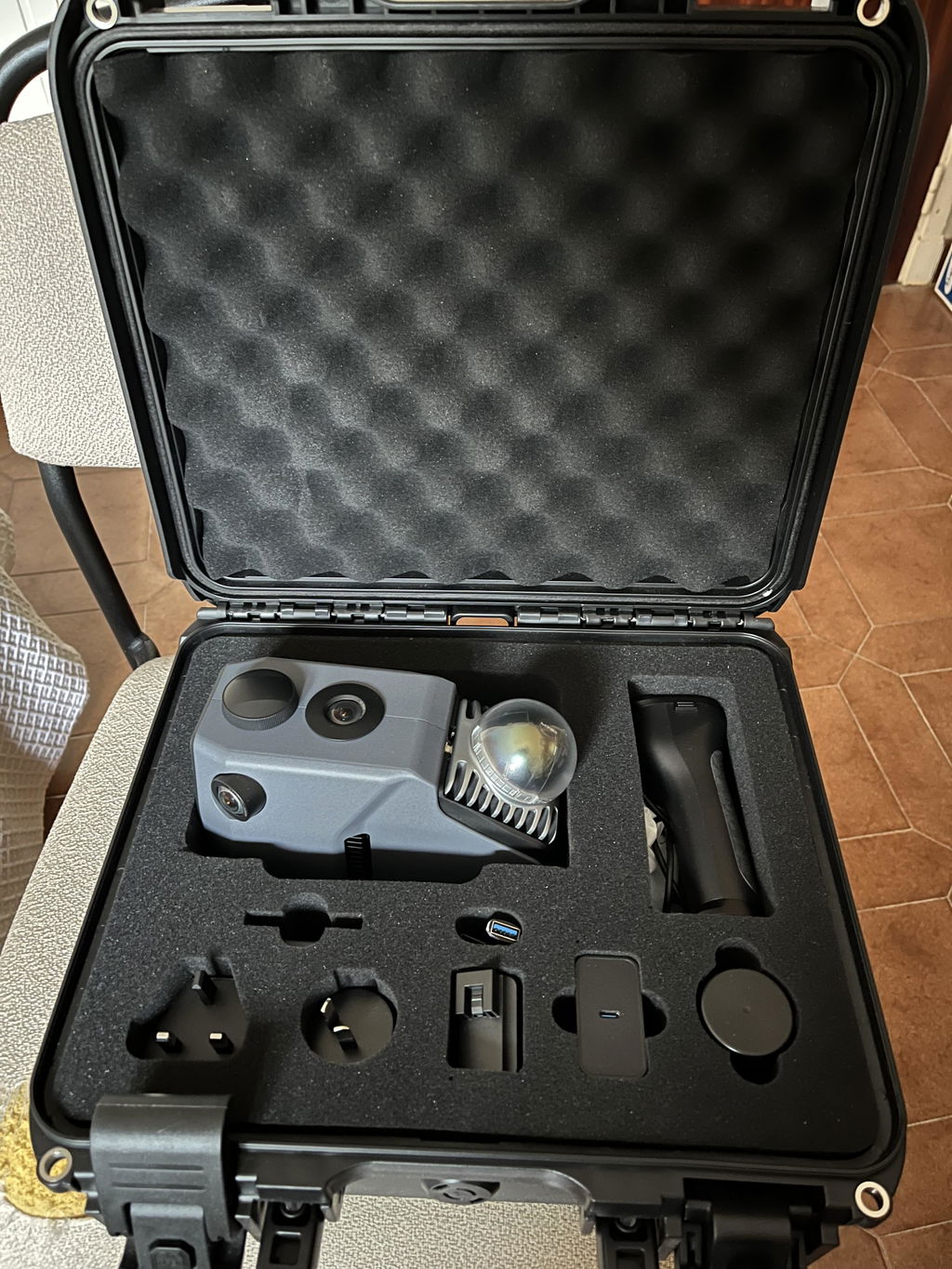

What's in the Box
Eagle LiDAR Scanner
 |
 |
 |
|
Eagle LiDAR Scanner × 1
|
Handle × 1
|
PD Power Adapter × 1
|
 |
 |
 |
|
1.5M Dual-Ended Type-C Cable × 1
|
TF Card 128G × 1
|
USB-C to USB-A Adaptor × 1
|
|
|
|
|
Eagle LiDAR Scanner × 1
|
Handle × 1
|
PD Power Adapter × 1
|
|
|
|
|
1.5M Dual-Ended Type-C Cable × 1
|
TF Card 128G × 1
|
USB-C to USB-A Adaptor × 1
|
FAQ
1. [Product Related] Do I need to purchase scanning software separately?
No. A free basic scanning software (expected online in March) is provided to process your scan data. For advanced editing and cloud-based exhibition, additional paid software is available. Please check our website or subscribe to our newsletter for updates.
2. [Product Related] Is professional training required?
No professional training is needed. We provide a detailed tutorial for beginners. Although spatial scanning is slightly more complex than object scanning, following the tutorial and practicing will help you master it quickly.
3. [Product Related] What’s the difference between Eagle Space Scanner and other space scanners?
The Eagle offers an 80–140m scanning range versus the typical 20–100m range of competitors, and it captures 200,000 points per second compared to around 100,000 points in many models. Eagle Max features four 48MP HD cameras for stunning 8K HDR panoramic imaging, whereas most scanners use one or two 16MP HD cameras. These advanced features make the Eagle superior for high-quality, detailed scanning.
4. [Product Related] What output formats are supported?
Eagle supports multiple formats: 3D Color Point Cloud (PLY), 3D Gaussian Splatting (PLY), 3D Colored Polygonal Model (OBJ), and 3D Panoramic Tour Data (OBJ).
5. [Product Related] Can I add extensions?
Yes. You can add a 45W portable power supply, external brackets for various carriers, a GPS module, a USB flash drive expansion, and other official accessories to enhance scanning functionality.
6. [Product Related] Which operating system does the scanning software support?
Currently, the software supports Windows 11 only.
7. [Product Related] Is the laser safe for humans?
Yes. The laser meets Class 1 standards (IEC60825-1:2014) and is safe for the human eye. However, avoid prolonged direct exposure.
8. [Product Related] What are the application scenarios?
Eagle is ideal for architecture & engineering, real estate & interior design, film & television production, game development, cultural heritage preservation, surveying, mapping, and more.
9. [Product Related] What is RTK and what functions does it have?
RTK (Real Time Kinematic) is a dynamic measurement technology that utilizes carrier phase observation for real-time differential GPS (RTDGPS). It consists of a base station receiver, a data link, and a rover receiver, typically using dual-frequency signals from satellite systems like GPS, GLONASS, Galileo, and Compass. Our RTK Antenna & Signal Module enhances positioning accuracy through real-time differential correction, achieving absolute accuracy of point clouds within 1-3 cm. This accessory requires a base station and can be calibrated using wireless communication on the L1 channel (1575.42 MHz) and the L2 channel (1227.60 MHz).
10. [Product Related] What is the shipping timeline for the RTK Radar module?
Since the RTK Radar module requires factory installation, the shipping for this component will be slightly delayed. It is expected to ship by mid-March.
11. [Product Related] Can I add the RTK Radar module after the Eagle has been shipped?
Once the Eagle has been shipped, it will no longer be possible to add the RTK Antenna & Signal Module. Please ensure all desired components are included before shipment.
12. [Shipping] Does the price include VAT, customs duties, and shipping fees?
Additional customs fees may apply depending on your country’s regulations. Please refer to your local guidelines or contact us at service@3dmakerpro.com for details.
13. [Shipping] Will the accessories be shipped with the scanner?
We aim to ship all items together; however, due to production schedules or customs requirements, items may sometimes be shipped separately.
14. [Shipping] When will shipping begin and what methods are available?
Shipping is expected to start on February 20. The default method is ocean freight (4–6 weeks transit), with air express available (2–3 weeks transit) at checkout.
15. [After-sales] Is a warranty included with the launch purchase?
Yes, all products come with a 2-year warranty.
